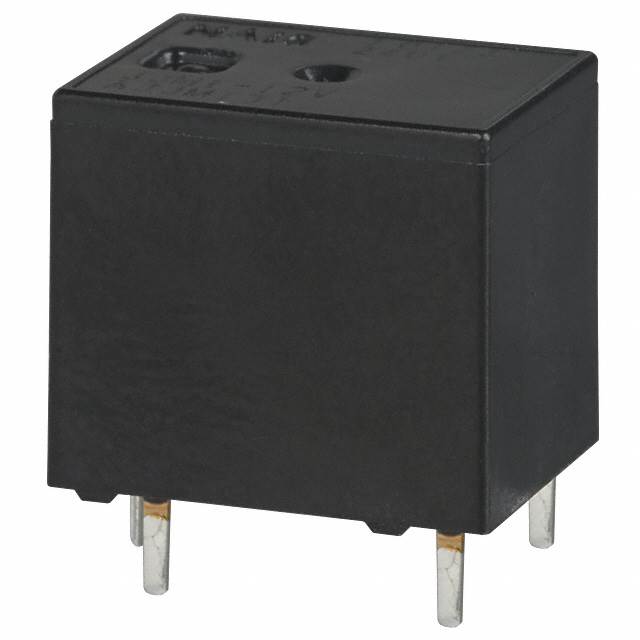

JJM2W-12V
Panasonic Electric Works
RELAY AUTOMOTIVE SPST 12A 12V
Deep-Dive with AI
Search across all available documentation for this part.
JJM2W-12V
Panasonic Electric Works
RELAY AUTOMOTIVE SPST 12A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JJM2W-12V |
|---|---|
| Coil Current | 83.3 mA |
| Coil Power | 640 mW |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (DM) (1 Form U) |
| Contact Material | Silver Alloy, Cadmium Free |
| Contact Rating (Current) | 12 A |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage | 14 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.51 | |
| 10 | $ 3.07 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.68 | |||
| 250 | $ 2.54 | |||
| 500 | $ 2.44 | |||
| 1000 | $ 2.34 | |||
Description
General part information
JJM2W Series
RELAY AUTOMOTIVE SPST 12A 12V
