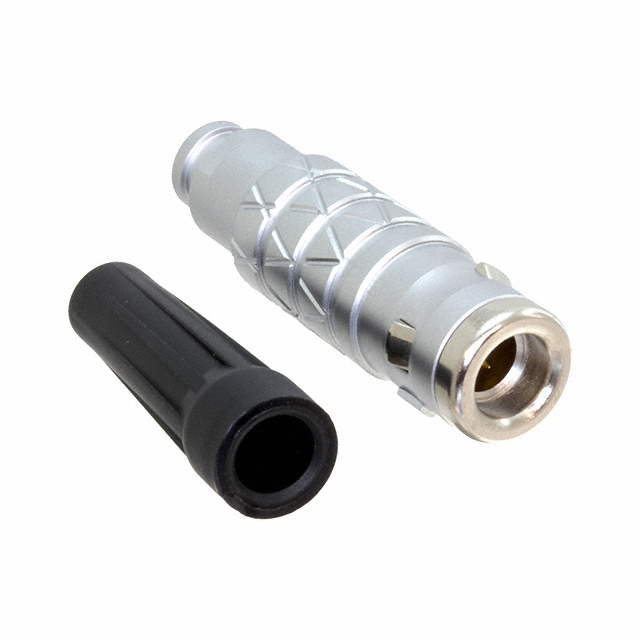

FLKB-05FGMS-GCP-209

Active

Amphenol LTW

CONN PLUG MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLKB-05FGMS-GCP-209

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Backshell Material, Plating	Chrome, Copper Alloy
Cable Opening [Max] [diameter]	0.185 in
Cable Opening [Max] [diameter]	4.7 mm
Cable Opening [Min] [diameter]	0.177 in
Cable Opening [Min] [diameter]	4.5 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	6.5 A
Fastening Type	Push-Pull
Features	Cable Clamp, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	B-5
Shielding	Shielded
Voltage Rating	250 VDC

Part	Orientation	Color	Ingress Protection	Shell Size - Insert	Contact Finish - Mating	Mounting Type	Fastening Type	Current Rating (Amps)	Shell Finish	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Backshell Material, Plating	Contact Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Shielding	Shell Material	Primary Material	Insert Material	Features	Connector Type
Amphenol LTW FLKB-05FGMS-GCP-209	G	Silver	IP68 - Dust Tight Waterproof	B-5	Gold	Free Hanging (In-Line)	Push-Pull	6.5 A	Chrome	0.177 in	4.5 mm	0.185 in	4.7 mm	Chrome Copper Alloy	Copper Alloy	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	125 °C	-40 °C	250 VDC	Shielded	Copper Alloy	Metal	Polyphenylene Sulfide (PPS)	Backshell Cable Clamp	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.56

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
