MAXM15463EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL MAXM15463
Deep-Dive with AI
Search across all available documentation for this part.
MAXM15463EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL MAXM15463
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM15463EVKIT# | MAXM15463 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 300 mA | 300 mA |
| Frequency - Switching | 500 kHz | 500 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 10-SMD Module |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-eMGA |
| Supplier Device Package | - | 2.6 |
| Supplier Device Package | - | 3 |
| Utilized IC / Part | MAXM15463 | MAXM15463 |
| Voltage - Input (Max) | - | 42 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 42 V | 42 V |
| Voltage - Input [Min] | 4.5 V | 4.5 V |
| Voltage - Output | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 38.34 | |
MAXM15463 Series
IC REG BUCK 3.3V 300MA 10EMGA
| Part | Voltage - Input (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Package / Case | Regulator Topology | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Main Purpose | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Output | Utilized IC / Part | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM15463AMB+ | 42 V | Surface Mount | 125 °C | -40 °C | 4.5 V | 10-eMGA | 2.6 | 3 | 10-SMD Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15463AMB+T | 42 V | Surface Mount | 125 °C | -40 °C | 4.5 V | 10-eMGA | 2.6 | 3 | 10-SMD Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15463EVKIT# | Buck | 500 kHz | 42 V | 4.5 V | DC/DC, Step Down | Board(s) | Non-Isolated | 1 | Fully Populated | 3.3 V | MAXM15463 | 300 mA |
Description
General part information
MAXM15463 Series

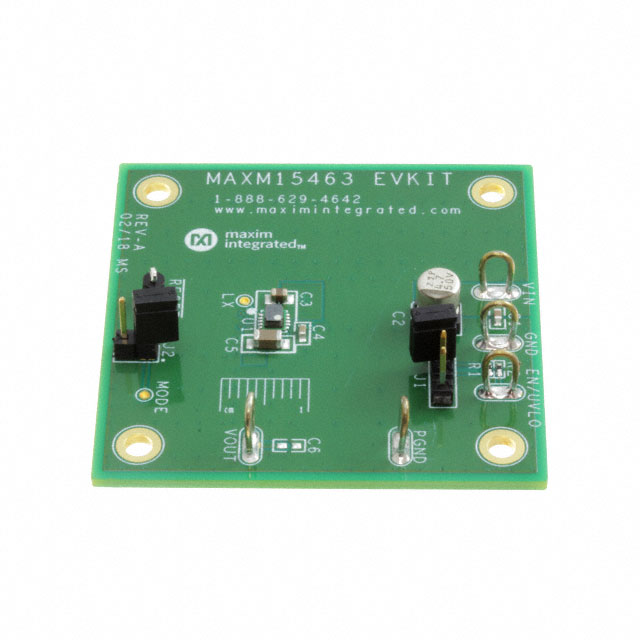

MAXM15463 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
