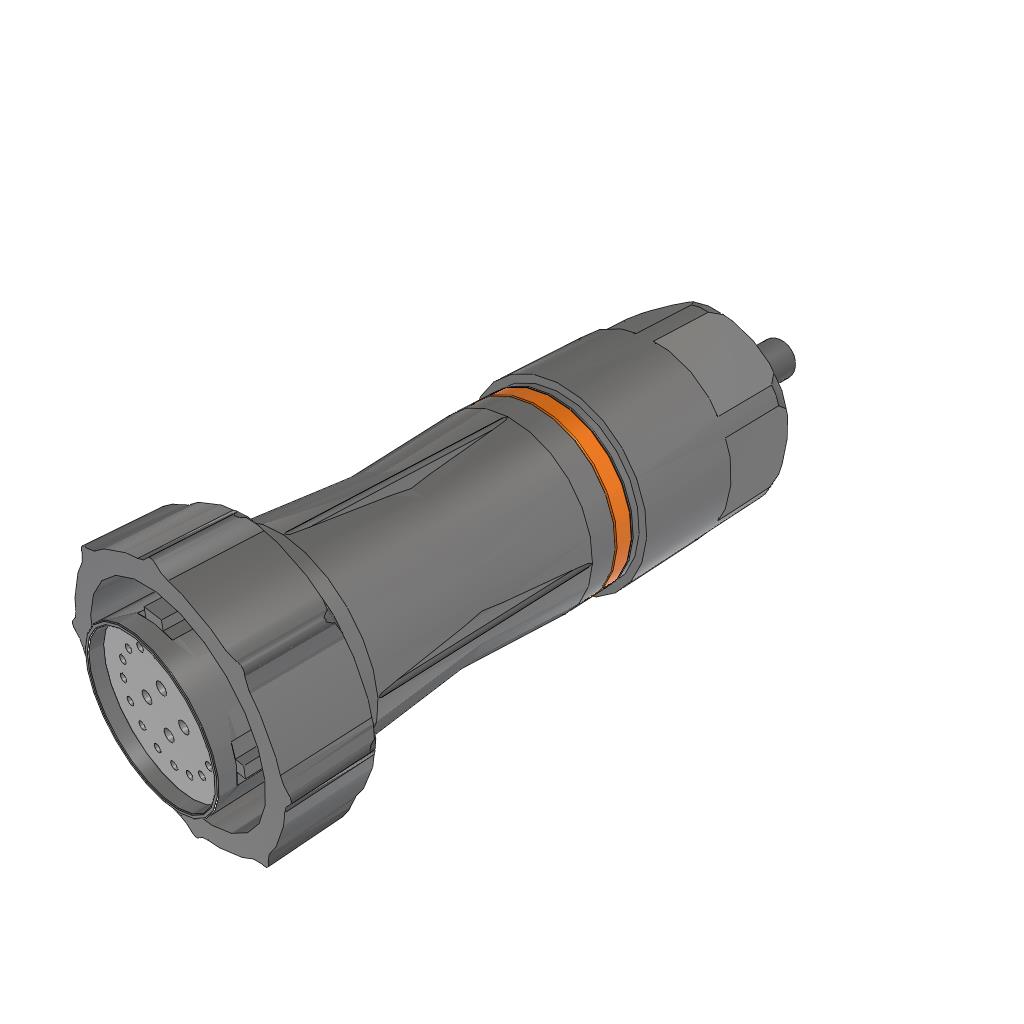

ACP-22-01-G-01.00-T-BC-P-1

Active

Samtec Inc.

CBL CIRC 30P MALE TO WIRE 3.28'

Search across all available documentation for this part.

Active

Samtec Inc.

CBL CIRC 30P MALE TO WIRE 3.28'

Technical Specifications

Parameters and characteristics for this part

Specification	ACP-22-01-G-01.00-T-BC-P-1

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	30
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M22
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Thermoplastic Polyurethane (TPU)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	Length [x]	Length [x]	1st Connector Orientation [custom]	2nd Connector Type	Assembly Configuration	Ingress Protection	Shielding	1st Connector Type	Color	1st Connector Gender	Usage	Cable Type	1st Connector Mounting Type	Cable Material	1st Connector Number of Positions
Samtec Inc. ACP-22-01-G-01.00-T-BC-P-1	All	M22	1 m	3.28 ft	Keyed	Wire Leads	Standard	IP68 - Dust Tight Waterproof	Unshielded	Plug	Black	Male Pins	Industrial Environments	Round	Free Hanging (In-Line)	Thermoplastic Polyurethane (TPU)	30

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly 3.28' (1.00m)

Technical documentation and resources
