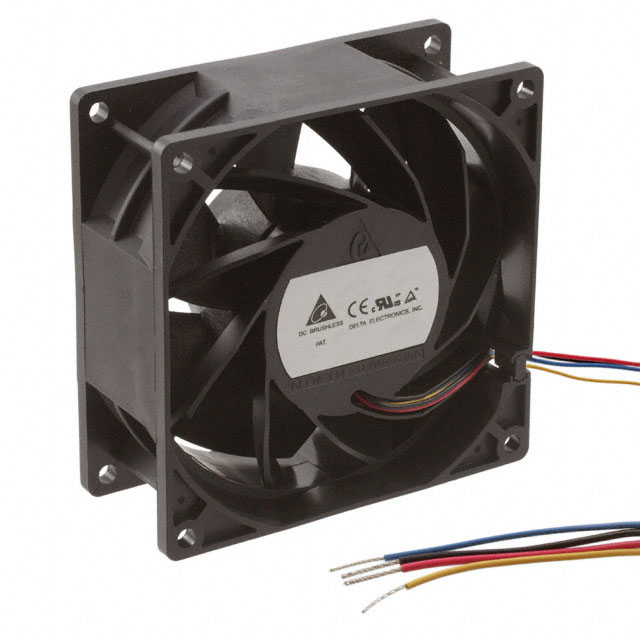

THB0948AE

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 30V TO 60V 162.5CFM 72.5DB 92 X 92 X 38MM

Search across all available documentation for this part.

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 30V TO 60V 162.5CFM 72.5DB 92 X 92 X 38MM

Technical Specifications

Parameters and characteristics for this part

Specification	THB0948AE

Air Flow	162.5 CFM
Air Flow	4.55 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	760 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	72.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	36.5 W
RPM	13000 RPM
Static Pressure	835.4 Pa
Static Pressure	3.354 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	56 VDC
Voltage Range [Min]	30 VDC
Weight	0.503 lb
Weight	228.16 g
Width [y]	38 mm

DC FAN AXIAL BALL BEARING 48V 30V TO 60V 162.5CFM 72.5DB 92 X 92 X 38MM

Part	RPM	Voltage - Rated [custom]	Material - Frame	Noise	Width [y]	Voltage Range [Min]	Voltage Range [Max]	Termination	Material - Blade	Air Flow	Air Flow	Weight	Weight	Approval Agency	Current Rating (Amps)	Static Pressure	Static Pressure	Power (Watts)	Bearing Type	Lifetime @ Temp.	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type
Delta Electronics THB0948AE	13000 RPM	48 VDC	Plastic	72.5 dB(A)	38 mm	30 VDC	56 VDC	4 Wire Leads	Plastic	162.5 CFM	4.55 m³/min	0.503 lb	228.16 g	CE, cURus, TUV	760 mA	835.4 Pa	3.354 in H2O	36.5 W	Ball	70000 Hrs	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 162.5 CFM (4.55m³/min) 4 Wire Leads
