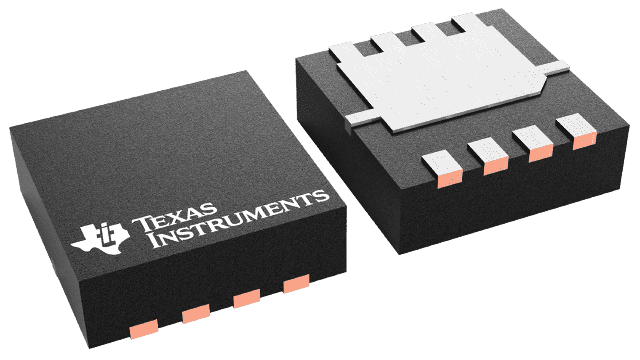

CSD16406Q3
Active25-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 3 MM X 3 MM, 7.4 MOHM 8-VSON-CLIP -55 TO 150
Deep-Dive with AI
Search across all available documentation for this part.
CSD16406Q3
Active25-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 3 MM X 3 MM, 7.4 MOHM 8-VSON-CLIP -55 TO 150
Technical Specifications
Parameters and characteristics for this part
| Specification | CSD16406Q3 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 19 A, 60 A |
| Drain to Source Voltage (Vdss) | 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 8.1 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 1100 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerTDFN |
| Power Dissipation (Max) [Max] | 2.7 W |
| Rds On (Max) @ Id, Vgs | 5.3 mOhm |
| Supplier Device Package | 8-VSON-CLIP (3.3x3.3) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) [Max] | 16 V |
| Vgs (Max) [Min] | -12 V |
| Vgs(th) (Max) @ Id [Max] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 0.71 | |
| 10 | $ 0.60 | |||
| 25 | $ 0.60 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.42 | |||
| CHIPMALL.COM LIMITED | N/A | 5 | $ 0.81 | |
| 50 | $ 0.60 | |||
| 150 | $ 0.53 | |||
| 500 | $ 0.48 | |||
| 2500 | $ 0.46 | |||
| Component Electronics, Inc | N/A | 1 | $ 3.08 | |
| 100 | $ 2.31 | |||
| 1000 | $ 2.00 | |||
| DigiKey | N/A | 1 | $ 1.65 | |
| 10 | $ 1.05 | |||
| 100 | $ 0.70 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.50 | |||
| 2500 | $ 0.45 | |||
| 5000 | $ 0.42 | |||
| 7500 | $ 0.40 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.67 | |
| 10 | $ 1.06 | |||
| 100 | $ 0.71 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 1.67 | ||
| 10 | $ 1.06 | |||
| 100 | $ 0.71 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.51 | |||
| Tape & Reel (TR) | 2500 | $ 0.46 | ||
| 5000 | $ 0.42 | |||
| 7500 | $ 0.41 | |||
| 12500 | $ 0.41 | |||
| LCSC | N/A | 1 | $ 0.86 | |
| 10 | $ 0.71 | |||
| 30 | $ 0.64 | |||
| 100 | $ 0.57 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.50 | |||
| Mouser Electronics | N/A | 1 | $ 1.34 | |
| 10 | $ 0.90 | |||
| 100 | $ 0.64 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.47 | |||
| 2500 | $ 0.44 | |||
| 5000 | $ 0.40 | |||
| Newark | N/A | 1 | $ 1.23 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.11 | |||
| 50 | $ 1.06 | |||
| 100 | $ 1.02 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.96 | |||
| 1000 | $ 0.95 | |||
| Quest Components | N/A | 1 | $ 1.12 | |
| 1 | $ 0.92 | |||
| 6 | $ 0.77 | |||
| 108 | $ 0.34 | |||
| 596 | $ 0.29 | |||
| Texas Instruments | LARGE T&R | 1 | $ 0.80 | |
| 100 | $ 0.61 | |||
| 250 | $ 0.45 | |||
| 1000 | $ 0.32 | |||
| Verical | N/A | 15 | $ 0.42 | |
| Win Source Electronics | N/A | 85 | $ 0.60 | |
| 180 | $ 0.56 | |||
| 275 | $ 0.55 | |||
| 395 | $ 0.51 | |||
| 515 | $ 0.49 | |||
| 645 | $ 0.47 | |||
CSD16406 Series
25-V, N channel NexFET™ power MOSFET, single SON 3 mm x 3 mm, 7.4 mOhm
| Part | Current - Continuous Drain (Id) @ 25°C | Input Capacitance (Ciss) (Max) @ Vds [Max] | FET Type | Drive Voltage (Max Rds On, Min Rds On) | Mounting Type | Technology | Gate Charge (Qg) (Max) @ Vgs | Operating Temperature [Max] | Operating Temperature [Min] | Vgs(th) (Max) @ Id [Max] | Vgs (Max) [Max] | Vgs (Max) [Min] | Rds On (Max) @ Id, Vgs | Drain to Source Voltage (Vdss) | Package / Case | Supplier Device Package | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CSD16406Q3 | 19 A, 60 A | 1100 pF | N-Channel | 4.5 V, 10 V | Surface Mount | MOSFET (Metal Oxide) | 8.1 nC | 150 °C | -55 °C | 2.2 V | 16 V | -12 V | 5.3 mOhm | 25 V | 8-PowerTDFN | 8-VSON-CLIP (3.3x3.3) | 2.7 W |
Description
General part information
CSD16406 Series
This 25 V, 4.2 mΩ, 3.3 mm × 3.3 mm SON NexFET power MOSFET has been designed to minimize losses in power conversion applications.
This 25 V, 4.2 mΩ, 3.3 mm × 3.3 mm SON NexFET power MOSFET has been designed to minimize losses in power conversion applications.
