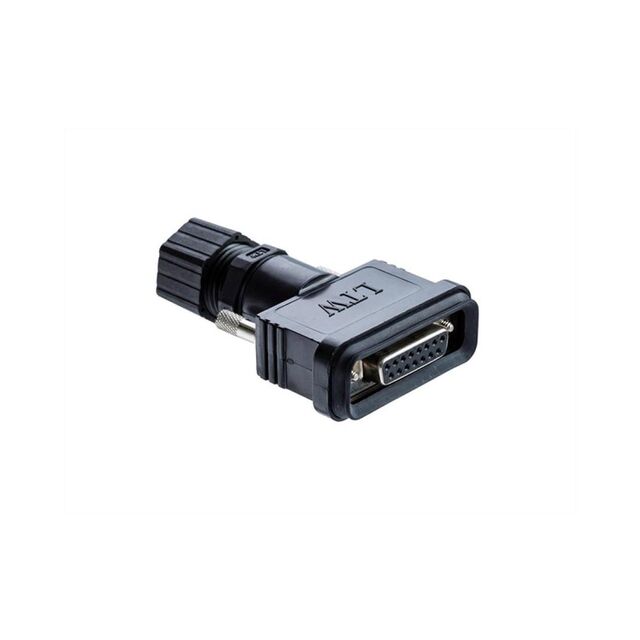

HDB-15BFFA-SL7001

Active

Amphenol LTW

CONN D-SUB HD RCPT 15POS SLDR

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB HD RCPT 15POS SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-15BFFA-SL7001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Acrylonitrile Butadiene Styrene (ABS)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Mounting Type	Features	Color	Flange Feature	Contact Material	Connector Style	Ingress Protection	Contact Type	Contact Finish	Connector Type	Current Rating (Amps)	Dielectric Material	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol LTW HDB-15BFFA-SL7001	-40 °C	105 ░C	Solder	15	Free Hanging (In-Line)	Shielded	Black	Housing/Shell (Unthreaded)	Copper Alloy	D-Sub High Density	IP67 - Dust Tight Waterproof	Signal	Gold	Receptacle Female Sockets	2 A	Acrylonitrile Butadiene Styrene (ABS)	3	DE E	1	High Density

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
