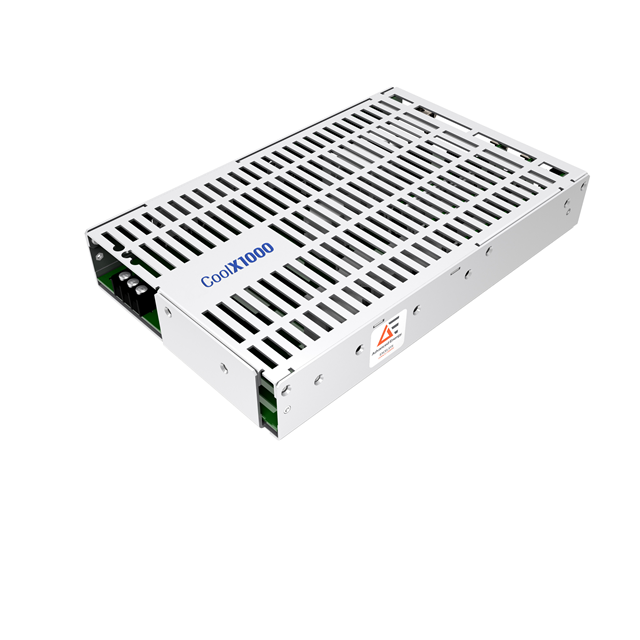

CX10M-000000-N5A

Active

EXCELSYS / Advanced Energy

CONFIG POWER CHASSIS 1000W 6 SLO

Search across all available documentation for this part.

Active

EXCELSYS / Advanced Energy

CONFIG POWER CHASSIS 1000W 6 SLO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 W 6 Slot AC DC Configurable Power Supply Chassis

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONFIG POWER CHASSIS 1000W 6 SLO

Part	Approval Agency	Height [z]	Height [z]	Efficiency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
EXCELSYS / Advanced Energy CX10M-000000-N-B	cCSAus, CE	1.6 in	40.6 mm	93 %	4000 V	85 °C	-40 °C	6	Medical	1 kW	254 mm	165.1 mm	6.5 "	10 in
EXCELSYS / Advanced Energy CX10M-000000-N-A	cCSAus, CE	1.6 in	40.6 mm	93 %	4000 V	85 °C	-40 °C	6	Medical	1 kW	254 mm	165.1 mm	6.5 "	10 in
EXCELSYS / Advanced Energy CX10M-000000-N5B	cCSAus, CE	1.6 in	40.6 mm	93 %	4000 V	85 °C	-40 °C	6	Medical	1 kW	254 mm	165.1 mm	6.5 "	10 in
EXCELSYS / Advanced Energy CX10M-000000-N4A	cCSAus, CE	1.6 in	40.6 mm	93 %	4000 V	85 °C	-40 °C	6	Medical	1 kW	254 mm	165.1 mm	6.5 "	10 in
EXCELSYS / Advanced Energy CX10M-000000-N5A	cCSAus, CE	1.6 in	40.6 mm	93 %	4000 V	85 °C	-40 °C	6	Medical	1 kW	254 mm	165.1 mm	6.5 "	10 in
EXCELSYS / Advanced Energy CX10M-000000-N4B	cCSAus, CE	1.6 in	40.6 mm	93 %	4000 V	85 °C	-40 °C	6	Medical	1 kW	254 mm	165.1 mm	6.5 "	10 in
