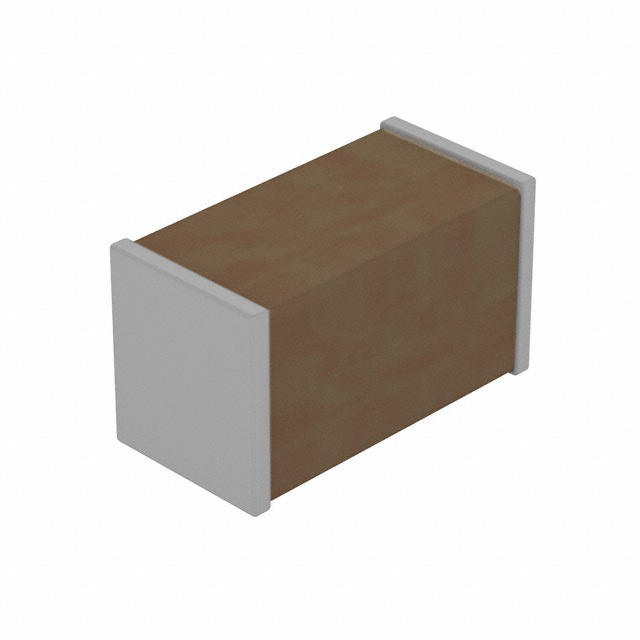

0402BB473K160YT

Active

Knowles Novacap

CAP CER 0.047UF 16V X7R 0402

Deep-Dive with AI

Search across all available documentation for this part.

0402BB473K160YT

Active

Knowles Novacap

CAP CER 0.047UF 16V X7R 0402

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0402BB473K160YT	0402BB Series

Applications	General Purpose	General Purpose
Capacitance	-	0.022 - 100000 pF
Features	-	Gold Flash Termination
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0402 (1005 Metric)	0402 (1005 Metric)
Size / Dimension [x]	0.04 "	0.04 "
Size / Dimension [x]	1.02 mm	1.02 mm
Size / Dimension [y]	0.02 in	0.02 in
Size / Dimension [y]	0.51 mm	0.51 mm
Temperature Coefficient	X7R	X7R
Thickness (Max)	0.61 mm	0.61 mm
Thickness (Max) [Max]	0.024 in	0.024 in
Tolerance	10 %	10 %
Voltage - Rated	-	25 - 50 VDC
Voltage - Rated [custom]	16 V	16 V

0402BB Series

CAP CER 10000PF 50V X7R 0402

Part	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Features	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Thickness (Max) [Max]	Thickness (Max)	Temperature Coefficient	Voltage - Rated	Voltage - Rated [custom]
Knowles Novacap 0402BB103K500NGT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	10000 pF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	50 VDC
Knowles Novacap 0402BB473K160YT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %			0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R		16 V
Knowles Novacap 0402BB223K500NGT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	0.022 µF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	50 VDC
Knowles Novacap 0402BB333K250NGT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	0.033 çF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	25 VDC
Knowles Novacap 0402BB104K160NGT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination	100000 pF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R		16 V
Knowles Novacap 0402BB223K500YT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %		0.022 µF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	50 VDC
Knowles Novacap 0402BB333K250YT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %		0.033 çF	0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R	25 VDC
Knowles Novacap 0402BB473K160NGT	General Purpose	MLCC, Surface Mount	-55 °C	125 °C	10 %	Gold Flash Termination		0.02 in	0.04 "	1.02 mm	0.51 mm	0402 (1005 Metric)	0.024 in	0.61 mm	X7R		16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.27
		10	$ 0.79
		50	$ 0.60
		100	$ 0.54
		500	$ 0.44
		1000	$ 0.41
		2500	$ 0.37
		5000	$ 0.35
	Digi-Reel®	1	$ 1.27
		10	$ 0.79
		50	$ 0.60
		100	$ 0.54
		500	$ 0.44
		1000	$ 0.41
		2500	$ 0.37
		5000	$ 0.35
	Tape & Reel (TR)	10000	$ 0.33

Description

General part information

0402BB Series

0.047 µF ±10% 16V Ceramic Capacitor X7R 0402 (1005 Metric)
