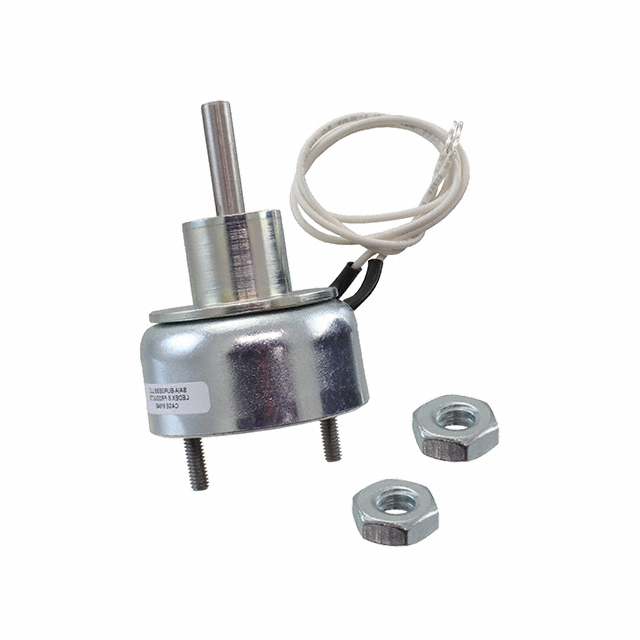

129415-026

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

LOW PROFILE SOLENOID - 5EC 12 VD

Search across all available documentation for this part.

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

LOW PROFILE SOLENOID - 5EC 12 VD

Technical Specifications

Parameters and characteristics for this part

LOW PROFILE SOLENOID - 5EC 12 VD

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Mounting Type	Technology	Stroke Length	Stroke Length [x]	Shaft Detail	DC Resistance (DCR)	Power (Watts)	Duty Cycle	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Type	Voltage - Rated	Termination Style
Ledex Dormeyer Saia, a Division of Johnson Electric 129415-026	1.035 "	47.63 mm	26.29 mm	1.875 in	Chassis Mount	Electromechanical	10.16 mm	0.4 in	Round	10.3 Ohm	21 W	Continuous	0.25 in	6.35 mm	Closed Frame (Pull), Tubular	14 V	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Continuous Duty Solenoid Closed Frame (Pull), Tubular Type 0.400" (10.16mm) Stroke 14VDC Chassis Mount
