T3477000U

Active

CONN RCPT MALE 7P SILV SLDR CUP

Active

CONN RCPT MALE 7P SILV SLDR CUP

Description

General part information

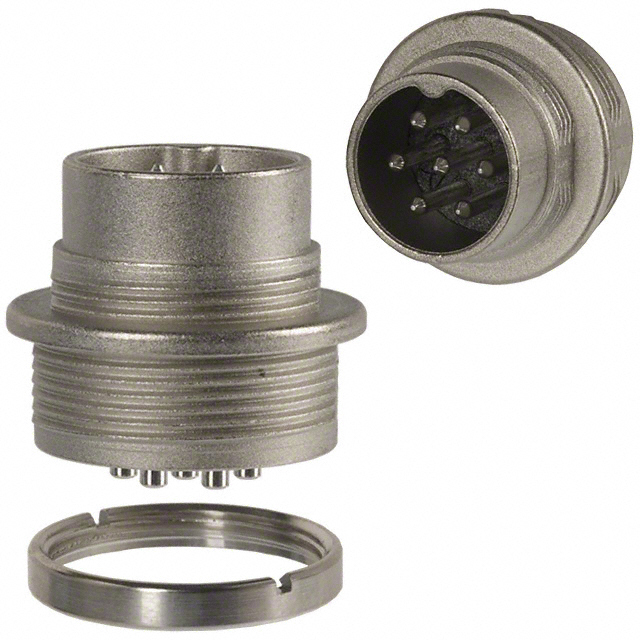

7 Position Circular Connector Receptacle, Male Pins Solder Cup

Parameters and characteristics for this part

Part	Contact Finish - Mating	Termination	Shielding	Connector Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Shell Material	Color	Shell Size - Insert	Primary Material	Voltage Rating	Ingress Protection	Orientation	Number of Positions	Mounting Type	Fastening Type	Features
Amphenol Tuchel Industrial T3478100U	Silver	Solder Cup	Shielded	Female Sockets Receptacle	7 A	100 °C	-40 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded
Amphenol Tuchel Industrial T3478000U	Silver	Solder Cup	Shielded	Female Sockets Receptacle	7 A	100 °C	-40 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded
Amphenol Tuchel Industrial T3475018U	Gold	Solder Cup	Shielded	Male Pins Plug	7 A	100 °C	-40 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Free Hanging (In-Line)	Threaded	Strain Relief
Amphenol Tuchel Industrial T3478018U	Gold	Solder Cup	Shielded	Female Sockets Receptacle	7 A	100 °C	-40 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded
Amphenol Tuchel Industrial T3476001U	Silver	Solder Cup	Shielded	Female Sockets Plug	7 A	100 °C	-40 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Free Hanging (In-Line)	Threaded	Strain Relief
Amphenol Tuchel Industrial T3477000U	Silver	Solder Cup	Shielded	Male Pins Receptacle	7 A	100 °C	-40 °C	Nickel	Die Cast	Silver	M16-7	Metal	250 V	IP40	Keyed	7	Panel Mount	Threaded
