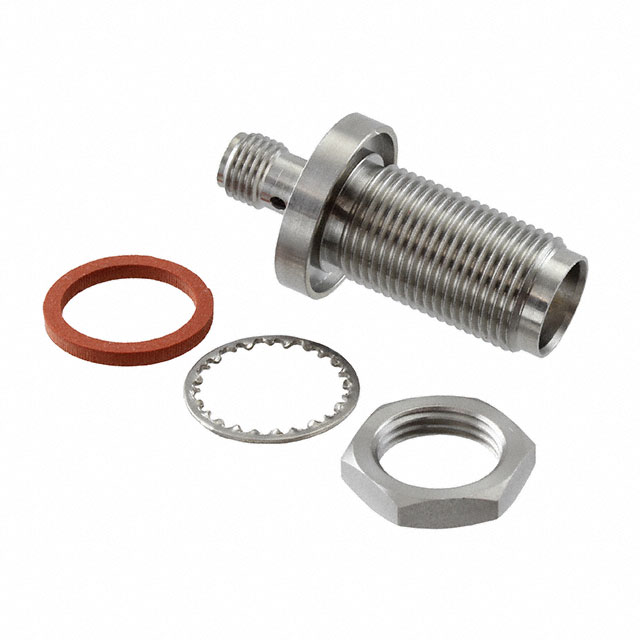

ADT-2793-TF-SMF-02

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT TNC JACK TO SMA JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT TNC JACK TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2793-TF-SMF-02

Adapter Series	SMA to TNC
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Style	Straight

CONN ADAPT TNC JACK TO SMA JACK

Part	Frequency - Max [Max]	Convert From (Adapter End)	Adapter Type	Center Contact Material	Mounting Feature	Style	Dielectric Material	Center Gender	Impedance	Body Material	Center Contact Plating	Includes	Conversion Type	Convert To (Adapter End)	Adapter Series
Cinch Connectivity Solutions Midwest Microwave ADT-2793-TF-SMF-02	18 GHz	TNC Jack, Female Socket	Jack to Jack	Beryllium Copper	Bulkhead	Straight	Polytetrafluoroethylene (PTFE)	Female to Female	50 Ohms	Stainless Steel	Gold	1 Connector, 1 Lockwasher, 1 Nut	Between Series	Female Socket, SMA Jack	SMA to TNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
