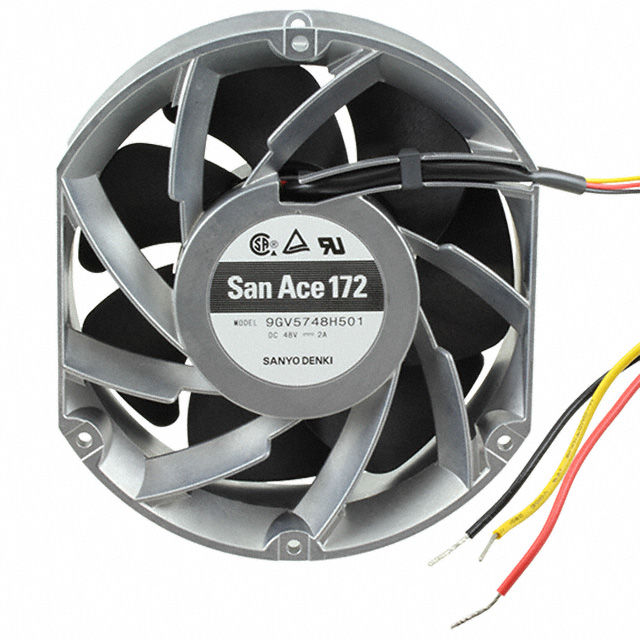

9GV5748H501

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 48VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 172X51MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Noise	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Lifetime @ Temp.	Fan Type	Termination	Material - Blade	Approval Agency	Air Flow	Air Flow	Material - Frame	Bearing Type	RPM	Features	Width [y]	Operating Temperature [Max]
Sanyo Denki America Inc. 9GV5748P5H01	74 dB(A)	Rectangular/Rounded	150 mm	172 mm	690 Pa	2.77 in H2O	96 W	55.2 VDC	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	1.8 lb	800 g	40000 Hrs	Tubeaxial	4 Wire Leads	Plastic	CSA TUV UL	400 CFM	11.2 mł/min	Aluminum	Ball	6300 RPM	Locked Rotor Protection PWM Control Speed Sensor (Tach)	51 mm
Sanyo Denki America Inc. 9GV5748H502	74 dB(A)	Rectangular/Rounded	150 mm	172 mm	630.2 Pa	2.53 in H2O	96 W	55.2 VDC	40.8 VDC	48 VDC	-10 °C		-10 °C	70 °C	1.8 lb	800 g	40000 Hrs	Tubeaxial	2 Wire Leads	Plastic	CSA TUV UL	400 CFM	11.2 mł/min	Aluminum	Ball	6300 RPM		51 mm	70 °C
Sanyo Denki America Inc. 9GV5748H501	74 dB(A)	Rectangular/Rounded	150 mm	172 mm	690 Pa	2.77 in H2O	96 W	55.2 VDC	40.8 VDC	48 VDC	-20 °C	70 °C	-20 C	70 °C	1.8 lb	800 g	40000 Hrs	Tubeaxial	3 Wire Leads	Plastic	CSA TUV UL	400 CFM	11.2 mł/min	Aluminum	Ball	6300 RPM	Speed Sensor (Tach)	51 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Rectangular/Rounded - 172mm L x 150mm H Ball 400.0 CFM (11.20m³/min) 3 Wire Leads
