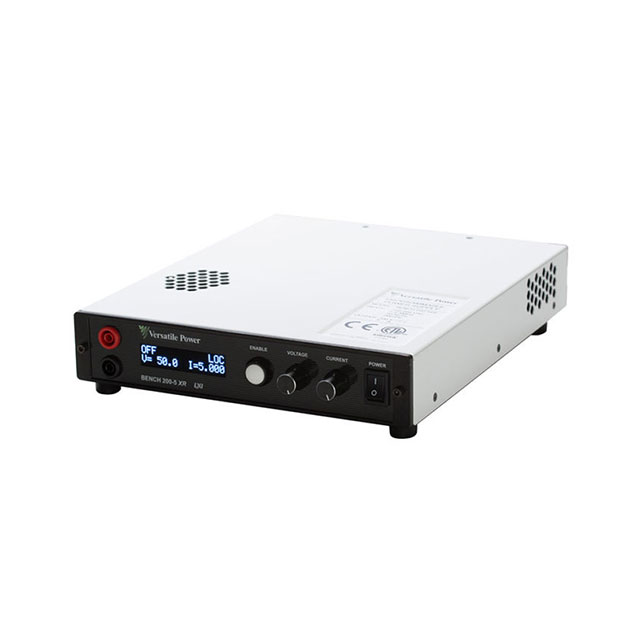

55-000033-01

Active

Versatile Power

PWR SUP PROG 200VDC 5A 600W

Deep-Dive with AI

Search across all available documentation for this part.

55-000033-01

Active

Versatile Power

PWR SUP PROG 200VDC 5A 600W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	55-000033-01

Accuracy - Voltmeter; Ammeter	0.1% + 60mA, 0.1% + 15mV
Current - Output [Max]	5 A
Current - Output [Min]	0 A
Current Regulation - Line	15 mA
Current Regulation - Load	15 mA
Display Type	LCD
Features	Programmable, USB 2.0, Rack Mount Requires Optional Hardware, LXI, Ethernet, Analog
Number of Outputs	1
Power (Watts)	600 W
Ripple [Max]	60 mV
Ripple [Min]	20 mV
Size / Dimension [x]	10.315 "
Size / Dimension [x]	262 mm
Size / Dimension [y]	8.819 "
Size / Dimension [y]	224 mm
Size / Dimension [z]	44 mm
Size / Dimension [z]	1.732 in
Type	Bench/Rack Mount (AC to DC)
Voltage - Output [Max]	200 V
Voltage - Output [Min]	0 VDC
Voltage Regulation - Line	15 mV
Voltage Regulation - Load	15 mV

55-000033 Series

PWR SUP PROG 200VDC 5A 600W

Part	Current Regulation - Line	Ripple [Min]	Ripple [Max]	Features	Current - Output [Min]	Current - Output [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Display Type	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Voltage Regulation - Load	Accuracy - Voltmeter; Ammeter	Voltage Regulation - Line	Number of Outputs	Current Regulation - Load
Versatile Power 55-000033-01	15 mA	20 mV	60 mV	Analog, Ethernet, LXI, Programmable, Rack Mount Requires Optional Hardware, USB 2.0	0 A	5 A	10.315 "	8.819 "	44 mm	224 mm	262 mm	1.732 in	Bench/Rack Mount (AC to DC)	LCD	200 V	0 VDC	600 W	15 mV	0.1% + 15mV, 0.1% + 60mA	15 mV	1	15 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

55-000033 Series

0 ~ 200VDC Output Bench/Rack Mount (AC to DC) Power Supply LCD 0 ~ 5A Output 600W Features Analog, Ethernet, LXI, Programmable, USB 2.0, Rack Mount Requires Optional Hardware
