6280-8SG-311

Active

Conxall/Switchcraft

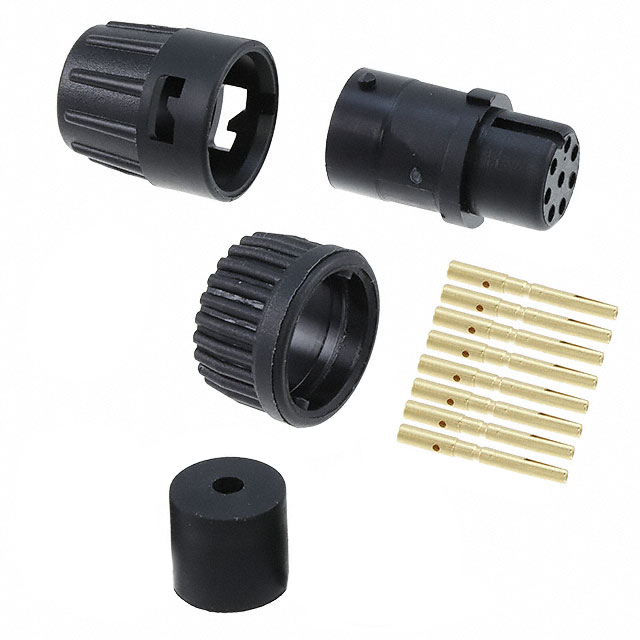

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6280-8SG-311

Active

Conxall/Switchcraft

CONN PLUG FMALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.93

Description

General part information

6280-8SG Series

8 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6280-8SG-311	6280-8SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.21 - 0.25 in
Cable Opening	-	0.19 - 0.22 in
Cable Opening	-	4.83 - 5.59 mm
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	4.06 - 4.57 mm
Cable Opening	-	0.16 - 0.18 in
Cable Opening	-	0.18 - 0.2 in
Cable Opening	-	4.57 - 5.08 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6280-8SG Series

CONN PLUG FMALE 8POS GOLD CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Ingress Protection	Fastening Type	Current Rating (Amps)	Orientation	Voltage Rating	Color	Primary Material	Features	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Applications	Shielding	Connector Type	Termination	Number of Positions	Backshell Material, Plating	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6280-8SG-519	-40 °C	115 °C	Brass	Weathertight	Bayonet Lock	Varies by Wire Gauge	Keyed	600 V	Black	Plastic	Backshell	Gold	0.21 in	0.19 in	4.83 mm	5.33 mm	Automotive, Communication Systems, Instrumentation	Unshielded	Female Sockets, Plug	Crimp	8	Nylon, Polyamide (PA)	Free Hanging (In-Line)
Conxall/Switchcraft 6280-8SG-311	-40 °C	115 °C	Brass	Weathertight	Bayonet Lock	Varies by Wire Gauge	Keyed	600 V	Black	Plastic	Backshell	Gold					Automotive, Communication Systems, Instrumentation	Unshielded	Female Sockets, Plug	Crimp	8	Nylon, Polyamide (PA)	Free Hanging (In-Line)	2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6280-8SG-522	-40 °C	115 °C	Brass	Weathertight	Bayonet Lock	Varies by Wire Gauge	Keyed	600 V	Black	Plastic	Backshell	Gold	0.25 in	0.22 in	5.59 mm	6.35 mm	Automotive, Communication Systems, Instrumentation	Unshielded	Female Sockets, Plug	Crimp	8	Nylon, Polyamide (PA)	Free Hanging (In-Line)
Conxall/Switchcraft 6280-8SG-315	-40 °C	115 °C	Brass	Weathertight	Bayonet Lock	Varies by Wire Gauge	Keyed	600 V	Black	Plastic	Backshell	Gold					Automotive, Communication Systems, Instrumentation	Unshielded	Female Sockets, Plug	Crimp	8	Nylon, Polyamide (PA)	Free Hanging (In-Line)				0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 6280-8SG-318	-40 °C	115 °C	Brass	Weathertight	Bayonet Lock	Varies by Wire Gauge	Keyed	600 V	Black	Plastic	Backshell	Gold					Automotive, Communication Systems, Instrumentation	Unshielded	Female Sockets, Plug	Crimp	8	Nylon, Polyamide (PA)	Free Hanging (In-Line)						4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6280-8SG-516	-40 °C	115 °C	Brass	Weathertight	Bayonet Lock	Varies by Wire Gauge	Keyed	600 V	Black	Plastic	Backshell	Gold					Automotive, Communication Systems, Instrumentation	Unshielded	Female Sockets, Plug	Crimp	8	Nylon, Polyamide (PA)	Free Hanging (In-Line)						4.06 mm	0.16 in	0.18 in	4.57 mm
Conxall/Switchcraft 6280-8SG-513	-40 °C	115 °C	Brass	Weathertight	Bayonet Lock	Varies by Wire Gauge	Keyed	600 V	Black	Plastic	Backshell	Gold					Automotive, Communication Systems, Instrumentation	Unshielded	Female Sockets, Plug	Crimp	8	Nylon, Polyamide (PA)	Free Hanging (In-Line)				0.13 in, 0.15 in	3.3 mm, 3.81 mm
