796858-2

Active

TE Connectivity AMP Connectors

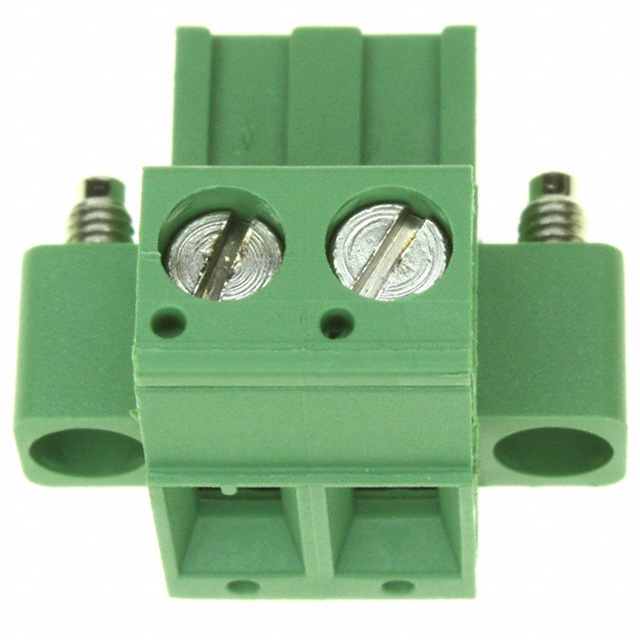

TERM BLOCK PLUG 2POS STR 5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 2POS STR 5MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	796858-2	796858 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	Mating Flange	Mating Flange
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 4
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	2	2 - 4
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	3 mm˛
Wire Gauge or Range - mm˛	-	0.05 mm˛
Wire Gauge or Range - mm² [Max]	3 mm²	3 mm²
Wire Gauge or Range - mm² [Min]	0.05 mm²	0.05 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

TERM BLOCK PLUG 2POS STR 5MM

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Termination Style	Insulation Height	Insulation Height	Voltage - UL	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Screw Size	Contact Mating Finish	Number of Positions	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Pitch [x]	Pitch [x]	Color	Material Flammability Rating	Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 796858-2	7.5 mm	6 mm	Screw - Rising Cage Clamp	0.61 in	15.49 mm	300 V	Free Hanging (In-Line)	-40 °C	110 °C	2	M3	Tin	2	Phosphor Bronze	30 AWG	12 AWG	Mating Flange	5 mm	0.197 in	Green	UL94 V-0	Plug, Female Sockets	0.05 mm²	3 mm²	1	0.79 Nm	7 Lb-In
