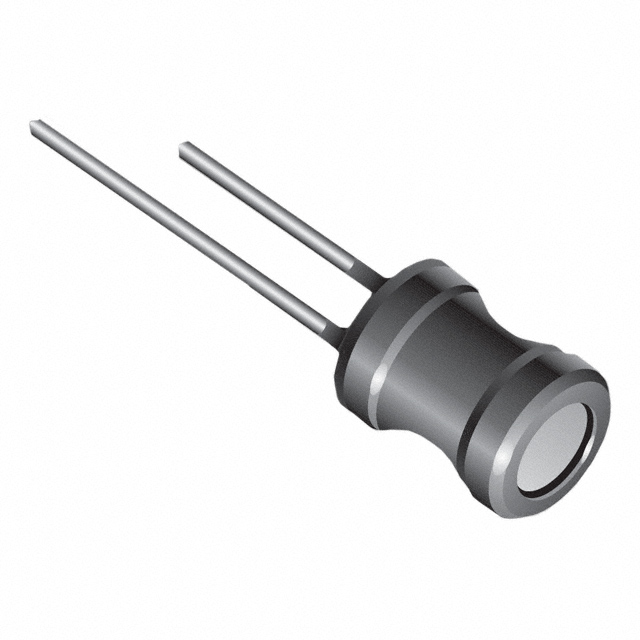

LPV1620-251KL
ObsoleteBourns Inc.
FIXED IND 250UH 1.5A 180 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPV1620-251KL
ObsoleteBourns Inc.
FIXED IND 250UH 1.5A 180 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPV1620-251KL |
|---|---|
| Current Rating (Amps) | 1.5 A |
| DC Resistance (DCR) | 180 mOhm |
| Height - Seated (Max) [Max] [z] | 20 mm |
| Height - Seated (Max) [Max] [z] | 0.787 " |
| Inductance | 250 µH |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Tolerance | 10 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LPV1620 Series
250 µH Unshielded Drum Core, Wirewound Inductor 1.5 A 180mOhm Max Radial, Vertical Cylinder
