1052544-1

Active

TE Connectivity AMP Connectors

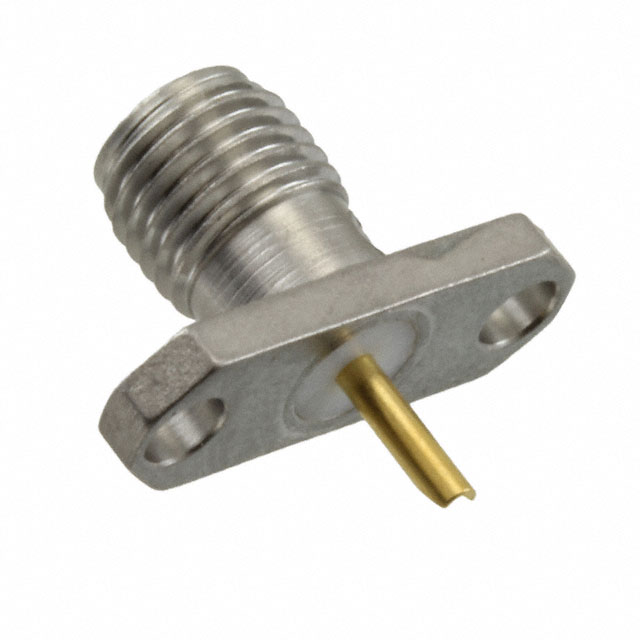

CONN SMA RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1052544-1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	85 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMA RCPT STR 50 OHM SOLDER

Part	Body Material	Housing Color	Frequency - Max [Max]	Center Contact Plating	Mounting Feature	Number of Ports	Connector Style	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Connector Type	Impedance	Shield Termination	Dielectric Material	Contact Termination	Voltage Rating
TE Connectivity AMP Connectors 1052544-1	Stainless Steel	Silver	18 GHz	Gold	Flange	1	SMA	Beryllium Copper	-65 ░C	105 ░C	500	Female Socket, Receptacle	50 Ohms	Solder	Polytetrafluoroethylene (PTFE)	Solder Cup	85 VDC

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
