GSF1.0002.01
ActiveSCHURTER Inc.

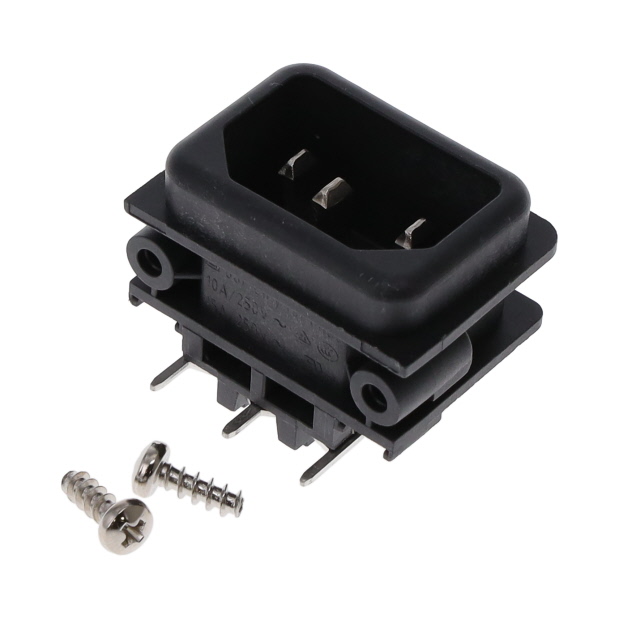

PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSF1.0002.01
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | GSF1.0002.01 | GSF1.0002 Series |
|---|---|---|
| Accomodates a Fuse | False | False |
| Approval Agency | CCC, UL, CSA, ENEC | CCC, UL, CSA, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Mounting Hardware | Mounting Hardware |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 30.3 mm | 30.3 mm |
| Panel Cutout Dimensions [y] | 22.3 mm | 22.3 mm |
| Panel Thickness | 0.236 in | 0.079 - 0.236 in |
| Panel Thickness | 6 mm | 2 - 6 mm |
| Panel Thickness | - | 2.5 mm |
| Panel Thickness | - | 0.098 in |
| Panel Thickness | - | 0.059 in |
| Panel Thickness | - | 1.5 mm |
| Termination | Solder | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
GSF1.0002 Series
POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A RA 1 PORT
| Part | Ingress Protection | Mounting Type | Termination | Connector Type | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Approval Agency | Material Flammability Rating | Panel Thickness [x] | Panel Thickness [x] | Filter Type | Connector Style | Current Rating - Appliance Inlet | Features | Panel Thickness | Panel Thickness | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness [custom] | Panel Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. GSF1.0002.51 | IP40 | Panel Mount, Flange, Through Hole, Right Angle | Solder | Male Blades, Receptacle | 250 VAC | CCC, CSA, ENEC, UL | UL94 V-0 | 2.5 mm | 0.098 in | Unfiltered - Commercial | IEC 320-C14 | 10 A | Mounting Hardware | |||||||
SCHURTER Inc. GSF1.0002.01 | IP40 | Panel Mount, Flange, Through Hole, Right Angle | Solder | Male Blades, Receptacle | 250 VAC | CCC, CSA, ENEC, UL | UL94 V-0 | Unfiltered - Commercial | IEC 320-C14 | 10 A | Mounting Hardware | 0.236 in | 6 mm | 30.3 mm | 22.3 mm | |||||
SCHURTER Inc. GSF1.0002.41 | IP40 | Panel Mount, Flange, Through Hole, Right Angle | Solder | Male Blades, Receptacle | 250 VAC | CCC, CSA, ENEC, UL | UL94 V-0 | Unfiltered - Commercial | IEC 320-C14 | 10 A | Mounting Hardware | 0.079 in | 2 mm | |||||||
SCHURTER Inc. GSF1.0002.31 | IP40 | Panel Mount, Flange, Through Hole, Right Angle | Solder | Male Blades, Receptacle | 250 VAC | CCC, CSA, ENEC, UL | UL94 V-0 | Unfiltered - Commercial | IEC 320-C14 | 10 A | Mounting Hardware | 0.059 in | 1.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.11 | |
| 50 | $ 4.13 | |||
| 100 | $ 3.81 | |||
| 500 | $ 2.96 | |||
| 1000 | $ 2.80 | |||
Description
General part information
GSF1.0002 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
