SY4S-05C

Active

IDEC Corporation

RELAY SOCKET, DIN RAIL, PANEL, SCREW, 14 PINS, 7 A, 300 V, GE1A SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SY4S-05C

Active

IDEC Corporation

RELAY SOCKET, DIN RAIL, PANEL, SCREW, 14 PINS, 7 A, 300 V, GE1A SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SY4S-05C	SY4S Series

Accessory Type	-	Clip, Hold Down
Features	Finger-Safe (IP20) Terminals	Finger-Safe (IP20) Terminals
For Use With/Related Products	RY Series	RY Series, RY Series Sockets
Mounting Type	DIN Rail	DIN Rail, Through Hole
Number of Positions	14	14
Termination Style	Screw Terminal	Screw Terminal, PC Pin
Type	Socket	Socket

SY4S Series

RELAY SOCKET, DIN RAIL, PANEL, SCREW, 14 PINS, 7 A, 300 V, GE1A SERIES

Part	Features	Type	Mounting Type	Number of Positions	For Use With/Related Products	Termination Style	Accessory Type
IDEC Corporation SY4S-05C	Finger-Safe (IP20) Terminals	Socket	DIN Rail	14	RY Series	Screw Terminal
IDEC Corporation SY4S-51F1					RY Series Sockets		Clip, Hold Down
IDEC Corporation SY4S-62		Socket	Through Hole	14	RY Series	PC Pin
IDEC Corporation SY4S-05		Socket	DIN Rail	14	RY Series	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.90
		10	$ 13.01
		25	$ 12.33
		50	$ 11.84
		100	$ 11.37
		250	$ 10.77
		500	$ 10.34
		1000	$ 9.93
Newark	Each	1	$ 16.12
		5	$ 15.71
		10	$ 15.31
		25	$ 14.51
		50	$ 13.70
		100	$ 12.90

Description

General part information

SY4S Series

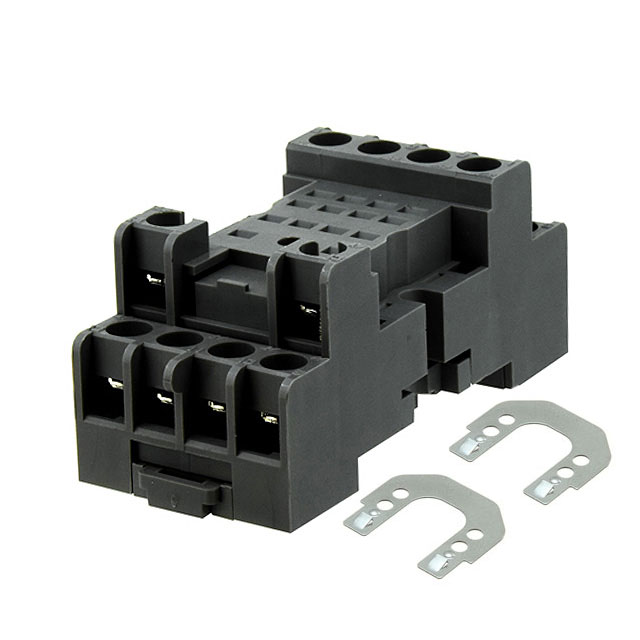

The SY4S-05C is a 4-pole 14-pin DIN Rail/Snap Mount Socket, 300V/7A rated, M3.5 screws with captive wire clamp. This DIN rail/snap mount socket is suitable for use with RU4S, RU42S, RY4S, RY42S, RY2KS, RM2S and GT5Y relays. 2 to 14AWG wire size. Snap-mount sockets are designed to mount individually or collectively without using a rail.
