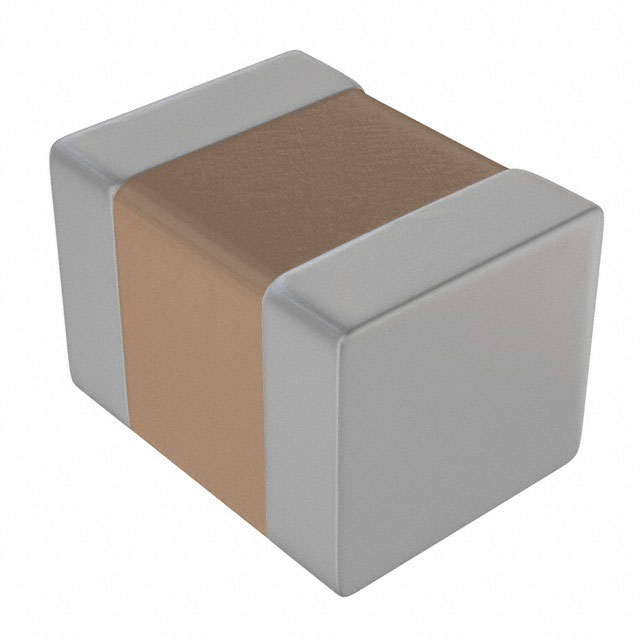

L1210R2R2MDWIT

Obsolete

KEMET

FIXED IND 2.2UH 2A 80 MOHM SMD

Search across all available documentation for this part.

Obsolete

KEMET

FIXED IND 2.2UH 2A 80 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Mounting Type	Inductance	Material - Core	Type	DC Resistance (DCR)	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Inductance Frequency - Test	Supplier Device Package	Supplier Device Package	Supplier Device Package
KEMET L1210R1R0MDWIT	Unshielded	Surface Mount	1 µH	Ferrite	Drum Core Wirewound	55 mOhm	1210	3225 Metric	-40 °C	105 ░C	20 %	2 A	3.2 mm	2.5 mm	0.126 in	0.098 in	0.106 in	2.7 mm	250 MHz	100 kHz	1210	3225
KEMET L1210R100MDWIT	Unshielded	Surface Mount	10 µH	Ferrite	Drum Core Wirewound	133 mOhm	1210	3225 Metric	-40 °C	105 ░C	20 %	900 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	0.106 in	2.7 mm	23 MHz	100 kHz			1210
KEMET L1210R4R7MDWIT	Unshielded	Surface Mount	4.7 ÁH	Ferrite	Drum Core Wirewound	100 mOhm	1210	3225 Metric	-40 °C	105 ░C	20 %	1.25 A	3.2 mm	2.5 mm	0.126 in	0.098 in	0.106 in	2.7 mm		100 kHz			1210
KEMET L1210R101MDWIT	Unshielded	Surface Mount	100 µH	Ferrite	Drum Core Wirewound	1.4 Ohm	1210	3225 Metric	-40 °C	105 ░C	20 %	270 mA	3.2 mm	2.5 mm	0.126 in	0.098 in	0.106 in	2.7 mm	6 MHz	100 kHz			1210
KEMET L1210R2R2MDWIT	Unshielded	Surface Mount	2.2 µH	Ferrite	Drum Core Wirewound	80 mOhm	1210	3225 Metric	-40 °C	105 ░C	20 %	2 A	3.2 mm	2.5 mm	0.126 in	0.098 in	0.106 in	2.7 mm	190 MHz	100 kHz			1210

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2.2 µH Unshielded Drum Core, Wirewound Inductor 2 A 80mOhm 1210 (3225 Metric)
