5-1105300-2
ActiveTE Connectivity AMP Connectors

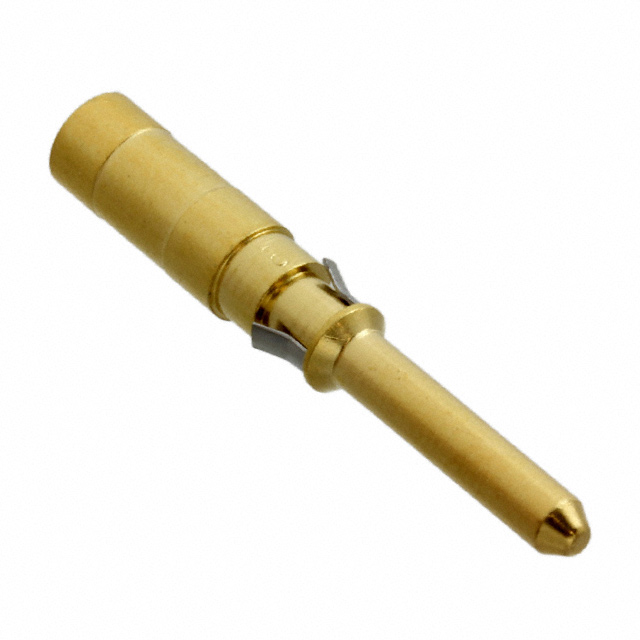

CONTACT H.D. CRIMP PIN 11AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-1105300-2
ActiveTE Connectivity AMP Connectors
CONTACT H.D. CRIMP PIN 11AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-1105300-2 | 1105300 Series |
|---|---|---|
| Contact Finish | Gold | Gold, Silver |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Type | Machined | Machined |
| Wire Gauge | 11 AWG | 11 - 13.5 AWG |
| Wire Gauge | - | 0.4 mm² |
| Wire Gauge | - | 0.13 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 4.26 | |
1105300 Series
CONTACT H.D. CRIMP PIN 11AWG
| Part | Pin or Socket | Wire Gauge | Contact Termination | Contact Finish | Type | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-1105300-2 | Pin | 11 AWG | Crimp | Gold | Machined | ||
TE Connectivity AMP Connectors 6-1105300-1 | Pin | Crimp | Silver | Machined | 0.4 mm² | 0.13 mm² | |
TE Connectivity AMP Connectors 6-1105300-2 | Pin | Crimp | Gold | Machined | 0.4 mm² | 0.13 mm² | |
TE Connectivity AMP Connectors 5-1105300-1 | Pin | 11 AWG | Crimp | Silver | Machined | ||
TE Connectivity AMP Connectors 4-1105300-1 | Pin | 13.5 AWG | Crimp | Silver | Machined |
Description
General part information
1105300 Series
Contact Crimp Pin 11 AWG Gold
