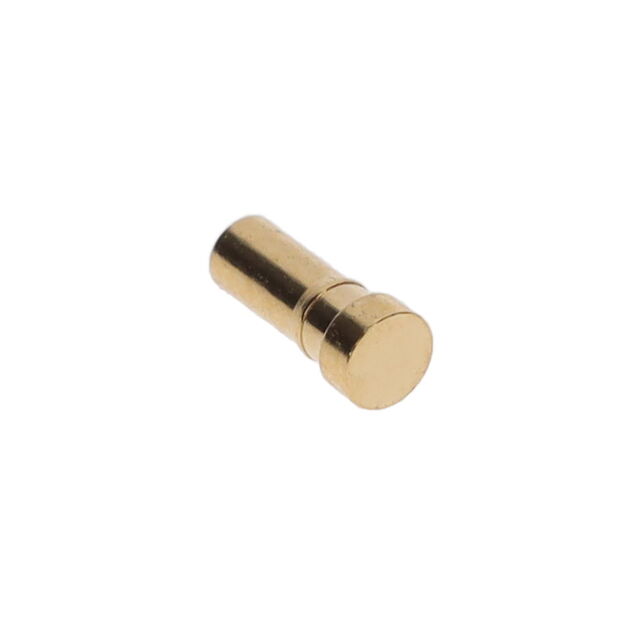

1941-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
1941-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1941-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter | 1.47 mm |
| Flange Diameter | 0.058 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 2.79 mm |
| Length - Above Flange [x] | 0.11 in |
| Length - Below Flange [x] | 0.059 in |
| Length - Below Flange [x] | 1.5 mm |
| Length - Overall [x] | 0.169 in |
| Length - Overall [x] | 4.29 mm |
| Mounting Hole Diameter [diameter] | 1.42 mm |
| Mounting Hole Diameter [diameter] | 0.056 in |
| Mounting Type | Through Hole |
| Pin Size - Below Flange [diameter] | 0.072 in |
| Pin Size - Below Flange [diameter] | 1.83 mm |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.53 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.42 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.32 | |||
Description
General part information
1941-0 Series
PC Pin Terminal Connector Through Hole Gold
