07-1-1-10

Active

TE Connectivity Deutsch Connectors

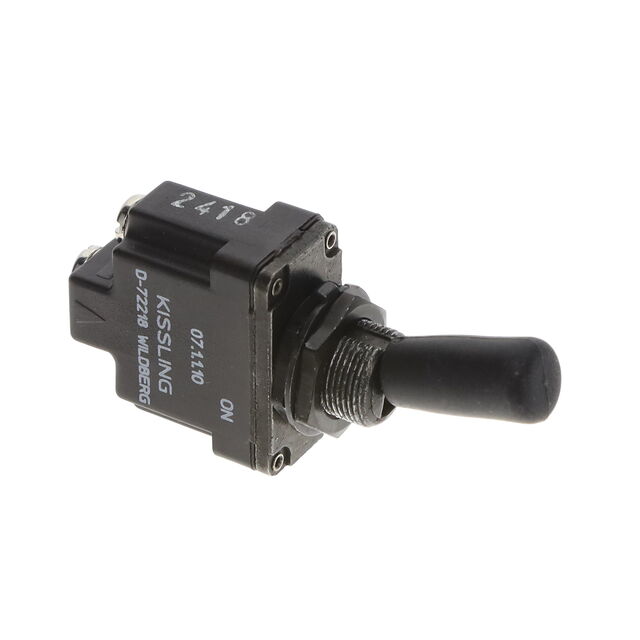

SWITCH TOGGLE SPST 15A 115V

Deep-Dive with AI

Search across all available documentation for this part.

07-1-1-10

Active

TE Connectivity Deutsch Connectors

SWITCH TOGGLE SPST 15A 115V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.78
		10	$ 44.66
		25	$ 42.10
		50	$ 40.25
		100	$ 38.49
		250	$ 36.27

Description

General part information

- Series

Toggle Switch SPST Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	07-1-1-10	- Series

Accessory Type	-	Secondary Lock
Actuator Type	Standard Round	Standard Round
Bushing Thread	M12	M12
Bushing Thread	0.75	0.75
Circuit	SPST	4PDT, SPDT, DPDT, SPST
Current Rating (Amps)	15 A	15 A
Electrical Life	100000 Cycles	100000 Cycles
Features	-	Locking
For Use With/Related Products	-	DT Series Receptacles, DT Series Plugs, DT Series
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Number of Positions	-	2 - 4
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-35 °C	-35 °C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-Off	On-On, On-Off-On, Off-Mom, On-Off
Termination Style	Screw Terminal	Quick Connect - 0.250" (6.3mm), Screw Terminal
Voltage Rating - AC	115 V	115 V
Voltage Rating - DC	28 V	28 V

- Series

SWITCH TOGGLE 4PDT 15A 115V

Part	Ingress Protection	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Actuator Type	Termination Style	Electrical Life	Voltage Rating - AC	Bushing Thread	Bushing Thread	Voltage Rating - DC	Current Rating (Amps)	For Use With/Related Products	Number of Positions	Features	Accessory Type
TE Connectivity Deutsch Connectors 07-4-2-13 933	IP65 - Dust Tight, Water Resistant	On-On	-35 °C	60 °C	12.4 mm	4PDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W4PA																DT Series Receptacles	4
TE Connectivity Deutsch Connectors 07-1-2-15 934	IP65 - Dust Tight, Water Resistant	On-Off-On	-35 °C	60 °C	12.4 mm	SPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W4SD																DT Series Plugs	4
TE Connectivity Deutsch Connectors 07-1-2-17 934	IP65 - Dust Tight, Water Resistant	On-Off-On	-35 °C	60 °C	12.4 mm	SPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W4SB																DT Series	4	Locking	Secondary Lock
TE Connectivity Deutsch Connectors W2SA																DT Series	2	Locking	Secondary Lock
TE Connectivity Deutsch Connectors 07-1-2-13 910	IP65 - Dust Tight, Water Resistant	On-On	-35 °C	60 °C	12.4 mm	SPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors 07-2-2-13 901	IP65 - Dust Tight, Water Resistant	On-On	-35 °C	60 °C	12.4 mm	DPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W2SC																DT Series Plugs	2
