07-2-2-13 901

Active

TE Connectivity Deutsch Connectors

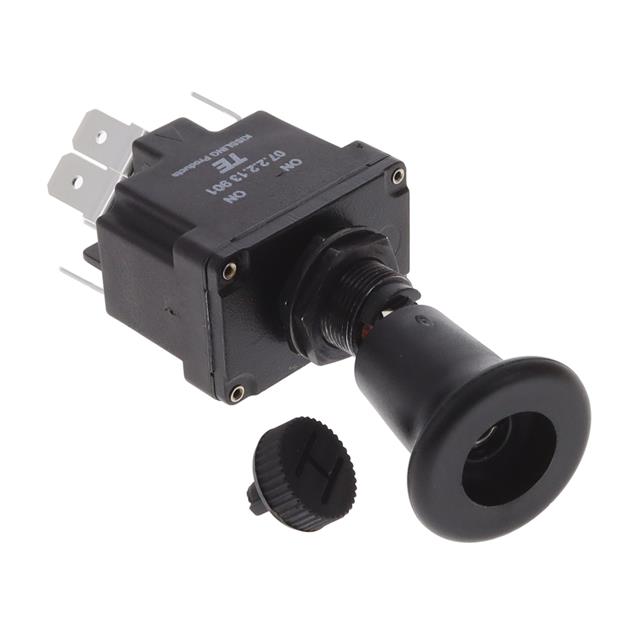

SWITCH TOGGLE DPDT 15A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

07-2-2-13 901

Active

TE Connectivity Deutsch Connectors

SWITCH TOGGLE DPDT 15A 115V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.56
		10	$ 85.85
		25	$ 80.91
		50	$ 77.36
		100	$ 73.96

Description

General part information

- Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	07-2-2-13 901	- Series

Accessory Type	-	Secondary Lock
Actuator Type	Standard Round	Standard Round
Bushing Thread	M12	M12
Bushing Thread	0.75	0.75
Circuit	DPDT	4PDT, SPDT, DPDT, SPST
Current Rating (Amps)	15 A	15 A
Electrical Life	100000 Cycles	100000 Cycles
Features	-	Locking
For Use With/Related Products	-	DT Series Receptacles, DT Series Plugs, DT Series
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Number of Positions	-	2 - 4
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-35 °C	-35 °C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-On	On-On, On-Off-On, Off-Mom, On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Screw Terminal
Voltage Rating - AC	115 V	115 V
Voltage Rating - DC	28 V	28 V

- Series

SWITCH TOGGLE 4PDT 15A 115V

Part	Ingress Protection	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Actuator Type	Termination Style	Electrical Life	Voltage Rating - AC	Bushing Thread	Bushing Thread	Voltage Rating - DC	Current Rating (Amps)	For Use With/Related Products	Number of Positions	Features	Accessory Type
TE Connectivity Deutsch Connectors 07-4-2-13 933	IP65 - Dust Tight, Water Resistant	On-On	-35 °C	60 °C	12.4 mm	4PDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W4PA																DT Series Receptacles	4
TE Connectivity Deutsch Connectors 07-1-2-15 934	IP65 - Dust Tight, Water Resistant	On-Off-On	-35 °C	60 °C	12.4 mm	SPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W4SD																DT Series Plugs	4
TE Connectivity Deutsch Connectors 07-1-2-17 934	IP65 - Dust Tight, Water Resistant	On-Off-On	-35 °C	60 °C	12.4 mm	SPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W4SB																DT Series	4	Locking	Secondary Lock
TE Connectivity Deutsch Connectors W2SA																DT Series	2	Locking	Secondary Lock
TE Connectivity Deutsch Connectors 07-1-2-13 910	IP65 - Dust Tight, Water Resistant	On-On	-35 °C	60 °C	12.4 mm	SPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors 07-2-2-13 901	IP65 - Dust Tight, Water Resistant	On-On	-35 °C	60 °C	12.4 mm	DPDT	Non-Illuminated	Standard Round	Quick Connect - 0.250" (6.3mm)	100000 Cycles	115 V	M12	0.75	28 V	15 A
TE Connectivity Deutsch Connectors W2SC																DT Series Plugs	2
