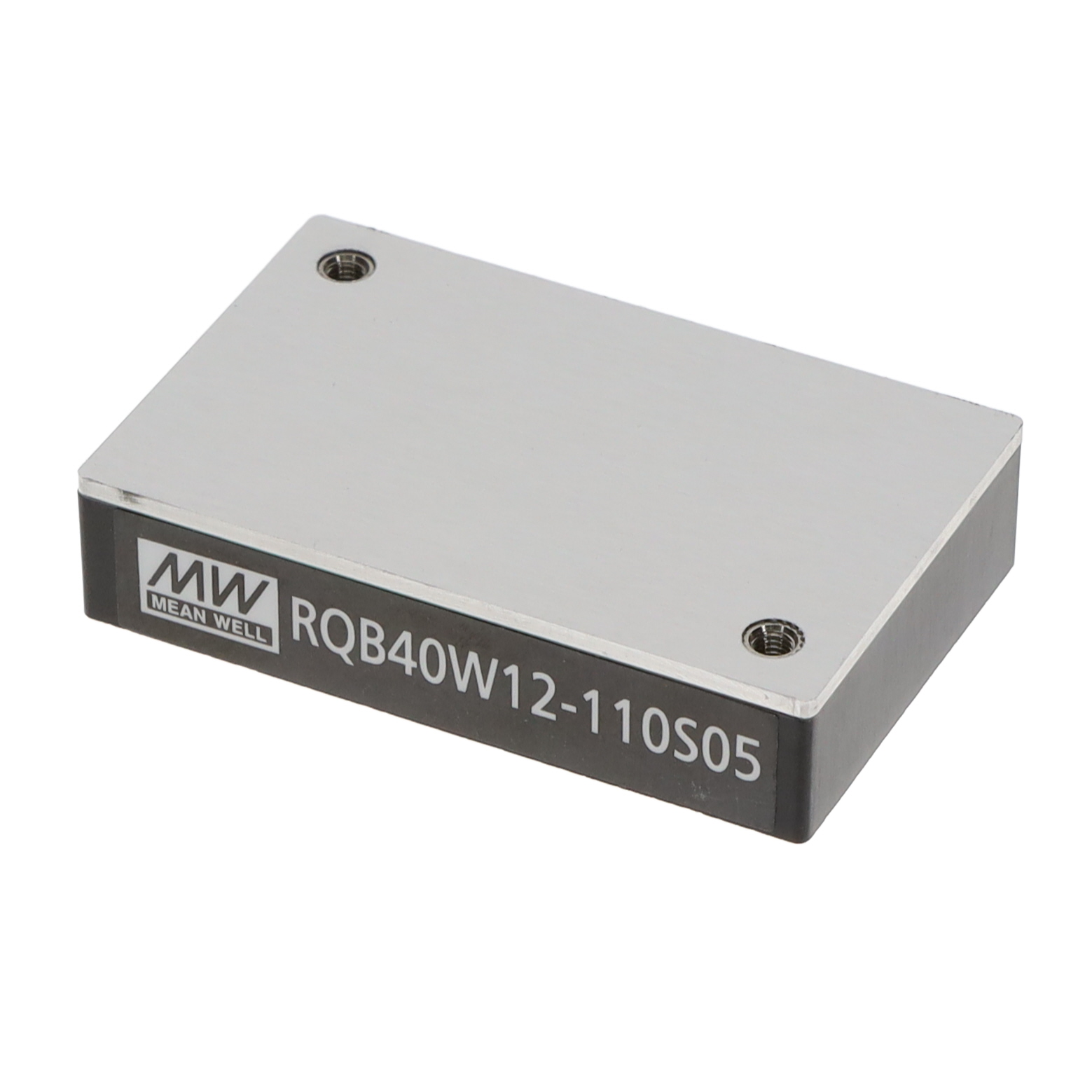

Specification	RQB40W12-110S05

Applications	ITE (Commercial)
Approval Agency	cURus, UKCA, EAC, CE, CB
Current - Output (Max)	8 A
Efficiency	88 %
Features	Adjustable Output, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-40 °C
Package / Case	Quarter Brick
Package Name	Quarter Brick
Power (Watts)	40 W
Size / Dimension Height	0.5 in
Size / Dimension Length	2.28 in
Size / Dimension Width	1.45 in
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max)	160 VDC
Voltage - Input (Min)	14 V
Voltage - Isolation	3 kV
Voltage - Output 1	5 V

RQB40W12 Series

Part	Type	Mounting Type	Voltage - Input (Min)	Number of Outputs	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Standard Number	Features	Voltage - Output 1	Applications	Voltage - Input (Max)	Package / Case	Efficiency	Voltage - Isolation	Package Name	Current - Output (Max)	Approval Agency	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)
MEAN WELL USA Inc. RQB40W12-110S48	Isolated Module	Through Hole	14 V	1	1.45 in	0.5 in	2.28 in	62368-1	Adjustable Output Remote On/Off	48 V	ITE (Commercial)	160 VDC	Quarter Brick	89 %	3 kV	Quarter Brick	833 mA	CB CE cURus EAC UKCA	40 W	90 °C	-40 °C
MEAN WELL USA Inc. RQB40W12-110S05	Isolated Module	Through Hole	14 V	1	1.45 in	0.5 in	2.28 in	62368-1	Adjustable Output Remote On/Off	5 V	ITE (Commercial)	160 VDC	Quarter Brick	88 %	3 kV	Quarter Brick	8 A	CB CE cURus EAC UKCA	40 W	90 °C	-40 °C
