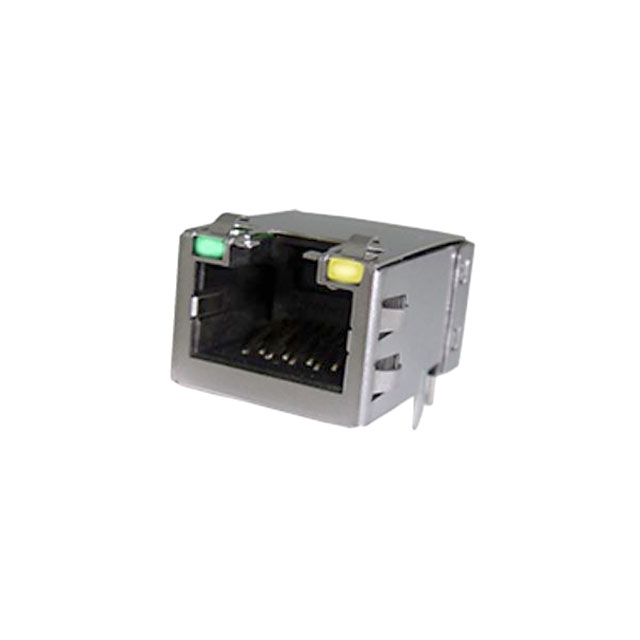

RJE48-188-14A1

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8PC8PC R/A SHIELDE

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8PC8PC R/A SHIELDE

Technical Specifications

Parameters and characteristics for this part

Specification	RJE48-188-14A1

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Phosphor Bronze
Features	Board Guide
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Housing Material	Mounting Type	Features	Tab Direction	Number of Positions/Contacts	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Ratings	Termination	Contact Material	Connector Type	Number of Rows	Orientation	Shielding	LED Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) RJE48-188-1411	Thermoplastic	Through Hole	Board Guide	Up	8p8c (RJ45 Ethernet)	85 °C	-55 °C	1	Cat5e	Solder	Phosphor Bronze	Jack	1	90 °	Shielded EMI Finger	Yellow - Green	Gold	0.152 Ám	6 Áin
Amphenol ICC (Commercial Products) RJE48-188-14A1	Thermoplastic	Through Hole	Board Guide	Up	8p8c (RJ45 Ethernet)	85 °C	-55 °C	1	Cat5e	Solder	Phosphor Bronze	Jack	1	90 °	Shielded EMI Finger	Green Yellow	Gold	0.152 Ám	6 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e
