PFMF.110.16.2

Active

SCHURTER Inc.

PTC RESET FUSE 16V 1.1A 1812

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 16V 1.1A 1812

Technical Specifications

Parameters and characteristics for this part

Specification	PFMF.110.16.2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.1 A
Current - Max [Max]	100 A
Current - Trip (It)	2.2 A
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1812, Concave
Package / Case	4532 Metric
Resistance - Initial (Ri) (Min) [Min]	40 mOhms
Resistance - Post Trip (R1) (Max) [Max]	210 mOhms
Size / Dimension [x]	4.55 mm
Size / Dimension [x]	0.179 in
Size / Dimension [y]	3.24 mm
Size / Dimension [y]	0.128 in
Thickness (Max) [Max]	0.033 in
Thickness (Max) [Max]	0.85 mm
Time to Trip	0.3 s
Type	Polymeric
Voltage - Max [Max]	16 V

PTC RESET FUSE 16V 1.1A 1812

Part	Current - Hold (Ih) (Max) [Max]	Current - Trip (It)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Time to Trip	Approval Agency	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Package / Case	Current - Max [Max]	Resistance - Post Trip (R1) (Max) [Max]	Voltage - Max [Max]
SCHURTER Inc. PFMF.110.16.2	1.1 A	2.2 A	85 °C	-40 °C	Polymeric	0.033 in	0.85 mm	4.55 mm	3.24 mm	0.179 in	0.128 in	Surface Mount	0.3 s	cURus, TUV	40 mOhms	1812, Concave	4532 Metric	100 A	210 mOhms	16 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

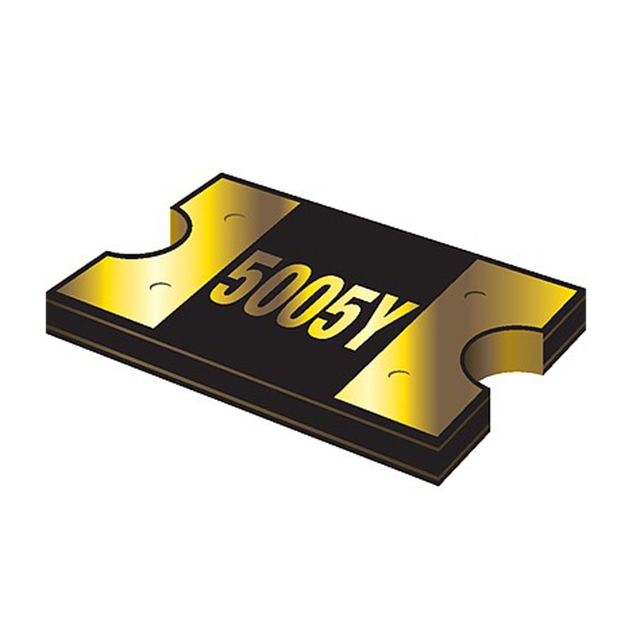

Polymeric PTC Resettable Fuse 16V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
