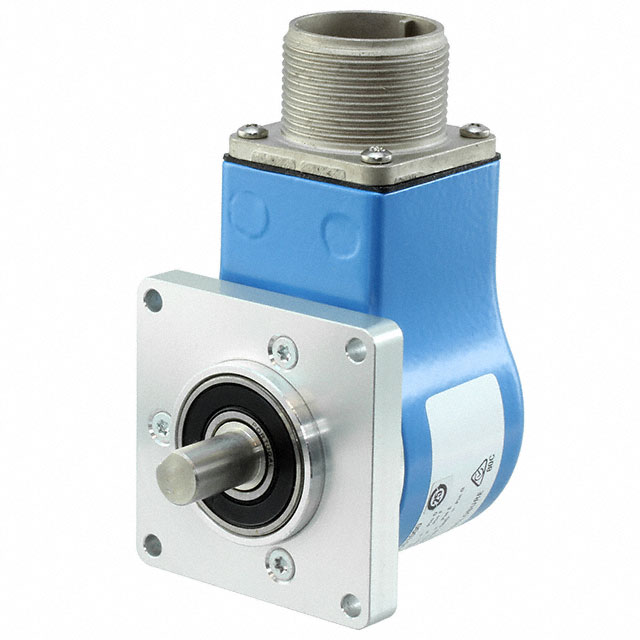

1094808

Active

SICK, Inc.

ROTARY ENCODR INCREMENTAL 300PPR

Search across all available documentation for this part.

Active

SICK, Inc.

ROTARY ENCODR INCREMENTAL 300PPR

Technical Specifications

Parameters and characteristics commom to parts in this series

ROTARY ENCODR INCREMENT 1024PPR

Part	Pulses per Revolution	Orientation	Encoder Type	Termination Style	Actuator Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Rotational Life (Cycles Min)
SICK, Inc. 1066234	1024	User Selectable	Incremental	Connector	3/8" Dia Flatted End	Chassis Mount	4.5 V	5.5 V
SICK, Inc. 1094815	500	User Selectable	Incremental	Connector	Shaft	Servo Mount	8 V	30 VDC	Quadrature (Incremental)	3.6B
SICK, Inc. 1094807	100	User Selectable	Incremental	Connector	Shaft	Servo Mount	8 V	30 VDC	Quadrature (Incremental)	3.6B
SICK, Inc. 1094820	5000	User Selectable	Incremental	Connector	Shaft	Servo Mount	8 V	30 VDC	Quadrature (Incremental)	3.6B
SICK, Inc. 1094821	65536	User Selectable	Incremental	Connector	Shaft	Servo Mount	5 V	30 VDC	Quadrature (Incremental)	3.6B
SICK, Inc. 1094808	300	User Selectable	Incremental	Connector	Shaft	Servo Mount	8 V	30 VDC	Quadrature (Incremental)	3.6B
SICK, Inc. 1094817	1024	User Selectable	Incremental	Connector	Shaft	Servo Mount	8 V	30 VDC	Quadrature (Incremental)	3.6B
SICK, Inc. 1068937	1000	User Selectable	Incremental	Connector	Shaft	Chassis Mount	8 V	30 VDC
SICK, Inc. 1094818	2048	User Selectable	Incremental	Connector	Shaft	Servo Mount	8 V	30 VDC	Quadrature (Incremental)	3.6B
SICK, Inc. 1094816	1000	User Selectable	Incremental	Connector	Shaft	Servo Mount	8 V	30 VDC	Quadrature (Incremental)	3.6B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 303.62

General part information

ROTARY ENCODR INCREMENTAL 300PPR

Technical documentation and resources
