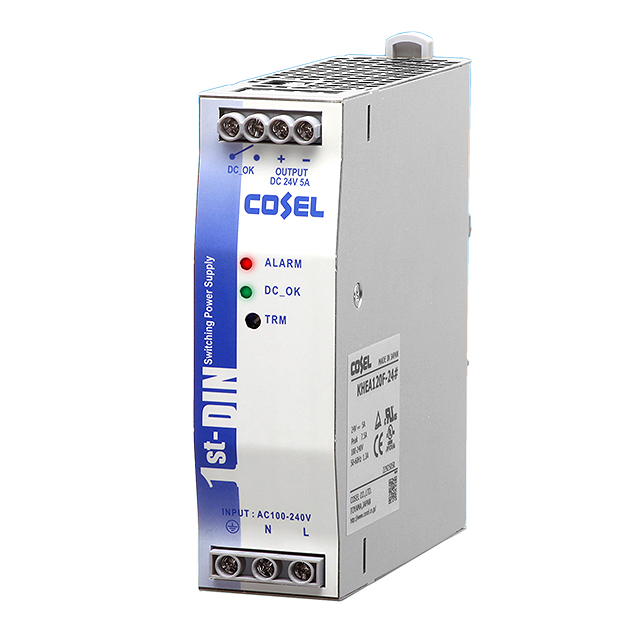

KHEA120F-24

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	KHEA120F-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output (Max) [Max]	5 A
Efficiency	92 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	4.77 in
Size / Dimension [x]	121.2 mm
Size / Dimension [y]	1.46 in
Size / Dimension [y]	37 mm
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Type	Current - Output (Max) [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Isolation	Applications	Voltage - Output 1	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]
Cosel USA, Inc. KHEA120F-24	92 %	1.46 in	4.77 in	124 mm	37 mm	121.2 mm	4.88 "	AC	5 A	CE cURus TUV	-20 °C	70 °C	Adjustable Output PFC Remote On/Off Universal Input	3000 V	ITE (Commercial)	24 V	1	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 120W
