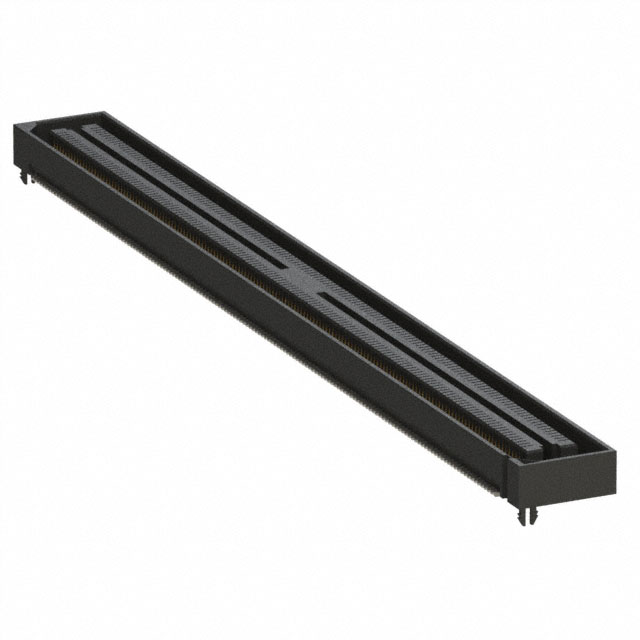

BSH-150-01-F-D-LC

Active

Samtec Inc.

CONN SOCKET 300POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 300POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-150-01-F-D-LC

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	300
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board	Height Above Board	Mated Stacking Heights	Features
Samtec Inc. BSH-150-01-F-D-EM2	2	300	0.5 mm	0.02 in	Gold	Board Edge Straddle Mount	3 Áin	0.076 Ám	Socket Center Strip Contacts
Samtec Inc. BSH-150-01-C-D-A	2	300	0.5 mm	0.02 in	Gold	Surface Mount	50 µin	1.27 µm	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm	Board Guide
Samtec Inc. BSH-150-01-F-D-A	2	300	0.5 mm	0.02 in	Gold	Surface Mount	3 Áin	0.076 Ám	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm	Board Guide
Samtec Inc. BSH-150-01-L-D-EM2	2	300	0.5 mm	0.02 in	Gold	Board Edge Straddle Mount	10 Áin	0.25 Ám	Socket Center Strip Contacts
Samtec Inc. BSH-150-01-L-D-A	2	300	0.5 mm	0.02 in	Gold	Surface Mount	10 Áin	0.25 Ám	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm	Board Guide
Samtec Inc. BSH-150-01-F-D-LC	2	300	0.5 mm	0.02 in	Gold	Surface Mount	3 Áin	0.076 Ám	Socket Center Strip Contacts	3.25 mm	0.128 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.33

General part information

300 Position Connector Socket, Center Strip Contacts Surface Mount Gold
