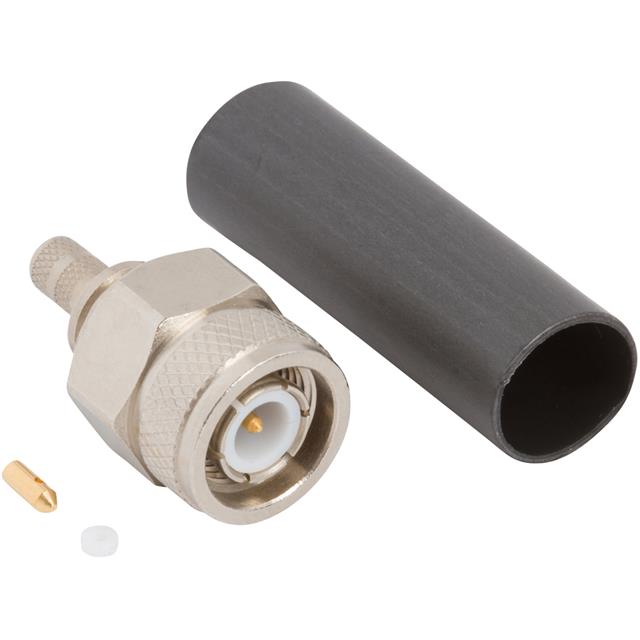

031-6499-EE

Active

AMPHENOL RF

TNC STRAIGHT CRIMP PLUG TIMES LM

Search across all available documentation for this part.

Active

AMPHENOL RF

TNC STRAIGHT CRIMP PLUG TIMES LM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6499-EE	031-64 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	LMR-200	Belden 7807A, LMR-200
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TNC	TNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Natural	Silver, Natural
Impedance	50 Ohms	50 Ohms
Includes	-	1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	-	500 V

CONN TNC PLUG STR 50 OHM SOLDER

Part	Contact Termination	Shield Termination	Includes	Number of Ports	Frequency - Max [Max]	Cable Group	Body Finish	Connector Style	Dielectric Material	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Mounting Type	Body Material	Mating Cycles	Housing Color	Center Contact Plating	Ingress Protection	Impedance	Connector Type
AMPHENOL RF 031-6499	Solder	Crimp	1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator	1	6000 MHz	Belden 7807A, LMR-200	Nickel	TNC	Polytetrafluoroethylene (PTFE)	Beryllium Copper, Brass	85 °C	-40 °C	500 V	Free Hanging (In-Line)	Brass	500	Silver	Gold	IP67 - Dust Tight, Waterproof	50 Ohms	Male Pin, Plug
AMPHENOL RF 031-6499-EE	Crimp	Crimp		1	6000 MHz	LMR-200	Nickel	TNC	Polytetrafluoroethylene (PTFE)	Beryllium Copper	85 °C	-40 °C		Free Hanging (In-Line)	Brass	500	Natural	Gold	IP67 - Dust Tight, Waterproof	50 Ohms	Male Pin, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
