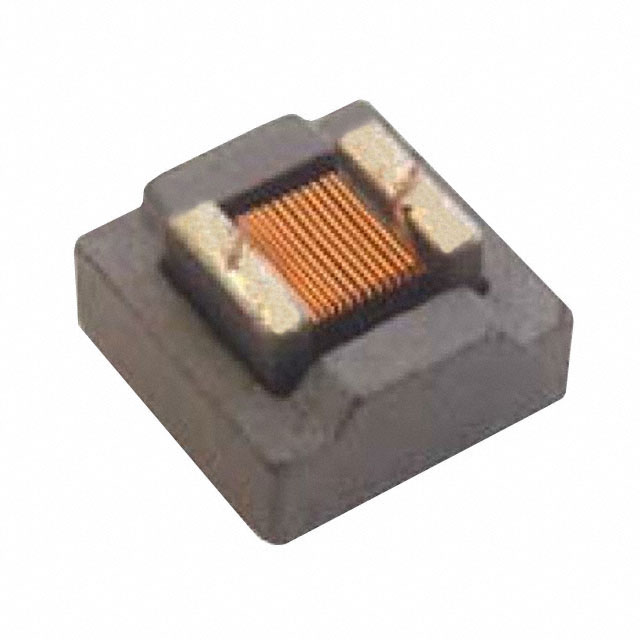

PM1008S-1R5M-RC

Obsolete

Bourns Inc.

FIXED IND 1.5UH 2.8A 60 MOHM SMD

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 1.5UH 2.8A 60 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Current Rating (Amps)	Type	Tolerance	Mounting Type	Package / Case	Shielding	Supplier Device Package	Supplier Device Package	Frequency - Self Resonant	Inductance	DC Resistance (DCR)	Material - Core
Bourns Inc. PM1008S-4R7M-RC	2.74 mm	0.108 in	100 kHz	85 °C	-40 °C	1 MHz 38	1 A	Drum Core Wirewound	20 %	Surface Mount	Nonstandard	Shielded	2520	1008	160 MHz	4.7 ÁH	350 mOhm	Ferrite
Bourns Inc. PM1008S-1R5M-RC	2.74 mm	0.108 in	100 kHz	85 °C	-40 °C	1 MHz 35	2.8 A	Drum Core Wirewound	20 %	Surface Mount	Nonstandard	Shielded	2520	1008	260 MHz	1.5 µH		Ferrite

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.5 µH Shielded Drum Core, Wirewound Inductor 2.8 A 60mOhm Max Nonstandard
