ASUB-277-37TP24

Active

Assmann WSW Components

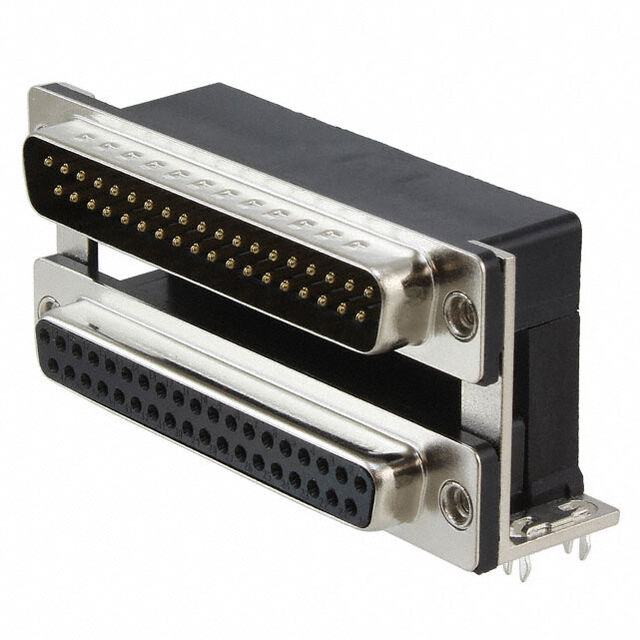

CONN D-SUB PLUG/RCPT 37P R/A SLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ASUB-277-37TP24

Active

Assmann WSW Components

CONN D-SUB PLUG/RCPT 37P R/A SLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ASUB-277-37TP24

Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4
Termination	Solder
Voltage Rating	250 VDC

ASUB-277 Series

Part	Contact Finish	Connector Style	Shell Size, Connector Layout	Flange Feature	Number of Rows	Mounting Type	Contact Finish Thickness	Material Flammability Rating	Current Rating (Amps)	Features	Termination	Voltage Rating	Contact Material	Number of Positions	Dielectric Material	Contact Type	Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Assmann WSW Components ASUB-277-25TP23	Gold	D-Sub - Stacked	3 (DB B)	Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A	Board Lock Grounding Indents	Solder	250 VDC	Copper Alloy	25	Polybutylene Terephthalate (PBT)	Signal	Black	Male Pins Plug	105 ░C	-55 °C
Assmann WSW Components ASUB-277-09TP24	Gold	D-Sub - Stacked	1 (DE E)	Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A	Board Lock Grounding Indents	Solder	250 VDC	Copper Alloy	9	Polybutylene Terephthalate (PBT)	Signal	Black	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C
Assmann WSW Components ASUB-277-09TP25	Gold	D-Sub - Stacked	1 (DE E)	Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A	Board Lock Grounding Indents	Solder	250 VDC	Copper Alloy	9	Polybutylene Terephthalate (PBT)	Signal	Black	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C
Assmann WSW Components ASUB-277-15TP24	Gold	D-Sub - Stacked		Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A	Board Lock Grounding Indents	Solder	250 VDC	Copper Alloy	15	Polybutylene Terephthalate (PBT)	Signal	Black	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C	2	2
Assmann WSW Components ASUB-277-37TP26	Gold	D-Sub - Stacked		Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A		Solder	250 VDC	Copper Alloy	37	Polybutylene Terephthalate (PBT)	Signal	Black	Receptacle Female Sockets	105 ░C	-55 °C			4
Assmann WSW Components ASUB-277-25TP24	Gold	D-Sub - Stacked	3 (DB B)	Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A	Board Lock Grounding Indents	Solder	250 VDC	Copper Alloy	25	Polybutylene Terephthalate (PBT)	Signal	Black	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C
Assmann WSW Components ASUB-277-25TP25	Gold	D-Sub - Stacked	3 (DB B)	Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A	Board Lock Grounding Indents	Solder	250 VDC	Copper Alloy	25	Polybutylene Terephthalate (PBT)	Signal	Black	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C
Assmann WSW Components ASUB-277-09TP26	Gold	D-Sub - Stacked	1 (DE E)	Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A		Solder	250 VDC	Copper Alloy	9	Polybutylene Terephthalate (PBT)	Signal	Black	Receptacle Female Sockets	105 ░C	-55 °C
Assmann WSW Components ASUB-277-37TP24	Gold	D-Sub - Stacked		Housing/Shell (4-40)	2	Through Hole Right Angle	Flash	UL94 V-0	3 A	Board Lock Grounding Indents	Solder	250 VDC	Copper Alloy	37	Polybutylene Terephthalate (PBT)	Signal	Black	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C			4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.78
		20	$ 7.90
		40	$ 7.25
		80	$ 7.06
		240	$ 6.30
		440	$ 5.91
		960	$ 5.23

Description

General part information

ASUB-277 Series

37, 37 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector
