CD216A-B130LLF

Obsolete

Bourns Inc.

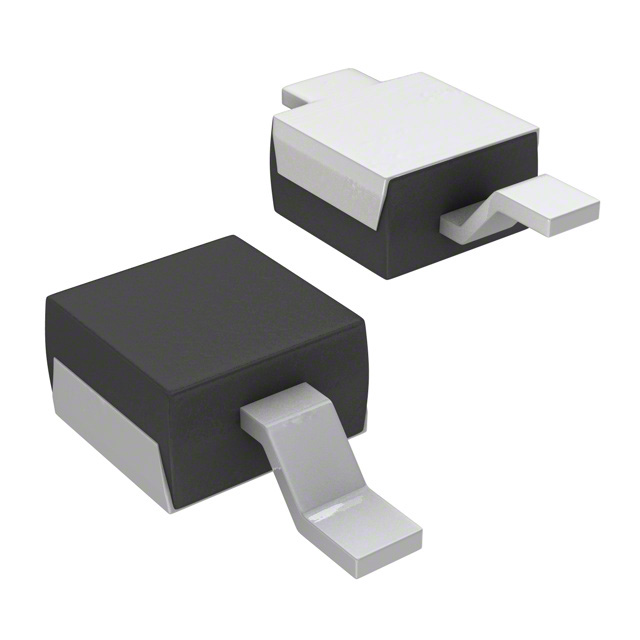

DIODE SCHOTTKY 30V 1A DO216AA

Search across all available documentation for this part.

Obsolete

Bourns Inc.

DIODE SCHOTTKY 30V 1A DO216AA

Technical Specifications

Parameters and characteristics for this part

Specification	CD216A-B130LLF

Capacitance @ Vr, F	70 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	410 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-216AA
Speed	200 mA, 500 ns
Supplier Device Package	DO-216AA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	380 mV

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Package / Case	Supplier Device Package	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Capacitance @ Vr, F	Current - Average Rectified (Io)
Bourns Inc. CD216A-B120LLF	20 V	400 µA	450 mV	Surface Mount	DO-216AA	DO-216AA	200 mA 500 ns	150 °C	-55 °C	Schottky	90 pF	1 A
Bourns Inc. CD216A-B130LLF	30 V	410 µA	380 mV	Surface Mount	DO-216AA	DO-216AA	200 mA 500 ns	125 °C	-55 °C	Schottky	70 pF	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 30 V 1A Surface Mount DO-216AA
