General part information
Circular Push Pull Connectors STRAIGHT PLUG
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | GEA.1E.240.LN | 1E Series |
|---|---|---|
| Accessory Type | Hex Nut | Hex Nut, Collet Set |
| Backshell Material, Plating | - | Brass, Chrome |
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 400, 223, 187A, 179B, RG-58C, 302, 59B |
| Cable Opening | - | 4.6 mm |
| Cable Opening | - | 5 mm |
| Cable Opening | - | 0.181 in |
| Cable Opening | - | 0.197 in |
| Center Contact Material | - | Brass |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver |
| Connector Style | - | Coaxial |
| Connector Type | - | Male Pin, Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | - | Gold |
| Contact Material | - | Bronze, Brass |
| Contact Termination | - | Solder |
| Current Rating (Amps) | - | 10 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Push-Pull |
| Features | - | Backshell |
| For Use With/Related Products | 2S, 1E, 2B, 1K, 1L | 2S, 1E, 2B, 1K, 1L, 1E, 1K Series Connector |
| Housing Color | - | Silver |
| Impedance | - | 75 Ohms |
| Ingress Protection | - | IP68 - Dust Tight, Waterproof, IP66/IP68 |
| Insert Material | - | Polyetheretherketone (PEEK) |
| Material | Brass | Brass |
| Material Flammability Rating | - | UL94 V-0 |
| Mating Cycles | - | 5000 |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Ports | - | 1 |
| Operating Temperature | - | -55 °C |
| Operating Temperature | - | 200 °C |
| Orientation | - | Keyed |
| Primary Material | - | Metal |
| Shell Finish | - | Chrome |
| Shell Material | - | Brass |
| Shell Size - Insert | - | 303 |
| Shield Termination | - | Clamp |
| Shielding | - | Shielded |
Circular Push Pull Connectors STRAIGHT PLUG
| Part | Fastening Type | Center Contact Material | Connector Style | Cable Group | Housing Color | Impedance | Body Material | Shield Termination | Mounting Type | Body Finish | Connector Type | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Ingress Protection | Dielectric Material | Number of Ports | Accessory Type | Material | For Use With/Related Products | Color | Contact Material | Shielding | Insert Material | Shell Finish | Backshell Material, Plating | Contact Finish - Mating | Shell Size - Insert | Features | Primary Material | Current Rating (Amps) | Material Flammability Rating | Shell Material | Orientation | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | Brass | Coaxial | 179B, 187A, 223, 302, 400, 59B, RG-58C | Silver | 75 Ohms | Brass | Clamp | Free Hanging (In-Line) | Chrome | Male Pin, Plug | Solder | -55 °C | 200 °C | 5000 | Gold | IP68 - Dust Tight, Waterproof | Polytetrafluoroethylene (PTFE) | 1 | ||||||||||||||||||||||

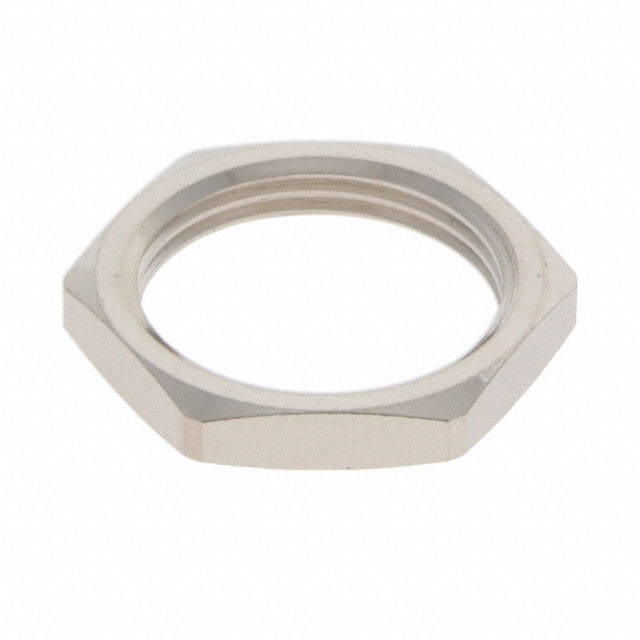

LEMO GEA.1E.240.LN | Hex Nut | Brass | 1E, 1K, 1L, 2B, 2S | Silver | ||||||||||||||||||||||||||||||||||||
Push-Pull | Free Hanging (In-Line) | Female Sockets, Male Pins, Plug | -55 °C | 200 °C | IP66/IP68 | Silver | Brass, Bronze | Shielded | Polyetheretherketone (PEEK) | Chrome | Brass, Chrome | Gold | 303 | Backshell | Metal | 10 A | UL94 V-0 | Brass | Keyed | 4.6 mm | 5 mm | 0.181 in | 0.197 in | |||||||||||||||||
LEMO FFA.1E.765.CNS | Collet Set | 1E, 1K Series Connector |
