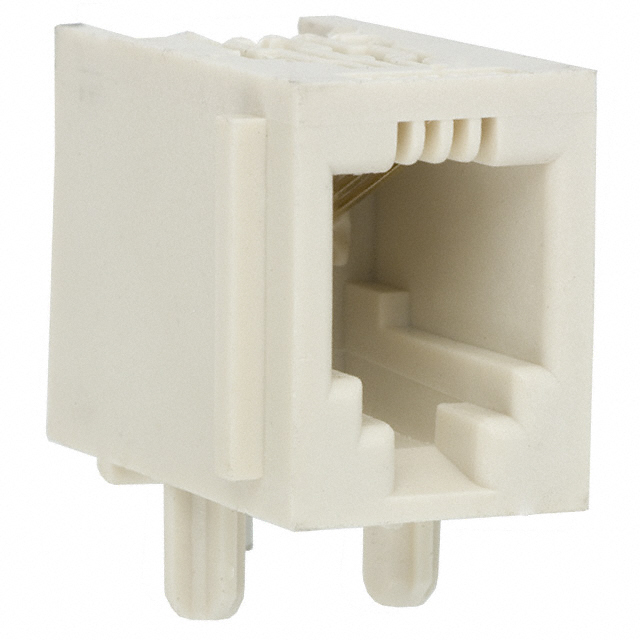

RJH-4L-B

Obsolete

TE Connectivity Corcom Filters

CONN MOD JACK 4P4C R/A UNSHLD

Search across all available documentation for this part.

Obsolete

TE Connectivity Corcom Filters

CONN MOD JACK 4P4C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	RJH-4L-B

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Filter, Panel Stops, Board Guide
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	4p4c
Number of Rows	1
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

CONN MOD JACK 4P4C R/A UNSHLD

Part	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	LED Color	Tab Direction	Mounting Type	Connector Type	Features	Contact Material	Number of Ports	Shielding	Number of Positions/Contacts	Orientation
TE Connectivity Corcom Filters RJH-4L-B	Gold	Solder	50 µin	1.27 µm	1	Does Not Contain LED	Down	Through Hole	Jack	Board Guide, Filter, Panel Stops	Phosphor Bronze	1	Unshielded	4p4c	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 4p4c (RJ9, RJ10, RJ22) 90° Angle (Right) Unshielded
