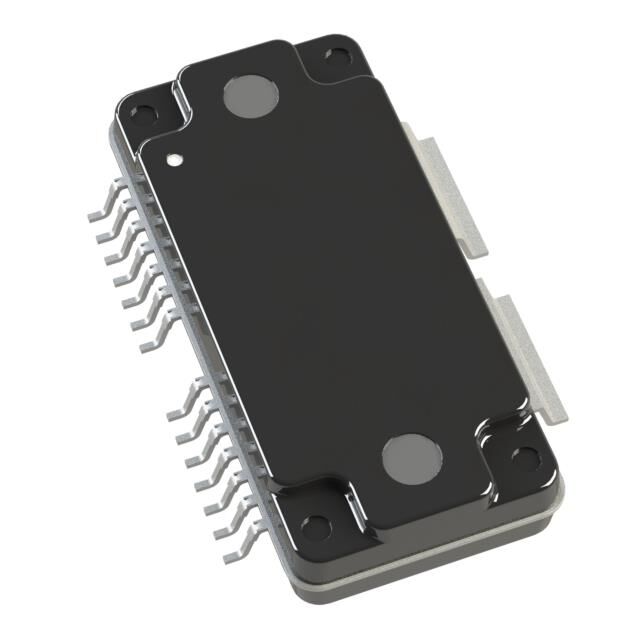

BLM9D1822S-60PBG

Active

Ampleon USA Inc.

RF FET

Search across all available documentation for this part.

Active

Ampleon USA Inc.

RF FET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Amplifier IC 1.8GHz ~ 2.2GHz OMP-780-16G-1

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BLM9D1822S-60PBG	BLM9 Series

	-	-
Frequency [Max]	2.2 GHz	1 - 960 GHz
Frequency [Min]	1.8 GHz	1.8 - 859 GHz
Gain	28.3 dB	17.8 - 35.5 dB
Mounting Type	Surface Mount	Surface Mount
Package / Case	OMP-780-16G-1	20-VLGA Exposed Pad, 20-QFN Exposed Pad, OMP-780-16F-1, OMP-780-16G-1
Supplier Device Package	OMP-780-16G-1	20-LGA (7x7), 20-PQFN (8x8), OMP-780-16F-1, OMP-780-16G-1
Voltage - Supply	28 V	28 - 48 V

BLM9D2324-08AM/LGA7X7/REELDP

Part	Mounting Type	Supplier Device Package	Gain	Package / Case	Frequency [Min]	Frequency [Max]	Voltage - Supply
Ampleon USA Inc. BLM9D2324-08AMZ	Surface Mount	20-LGA (7x7)	27 dB	20-VLGA Exposed Pad
Ampleon USA Inc. BLM9D3538-12AMZ	Surface Mount	20-LGA (7x7)	32 dB	20-VLGA Exposed Pad	3.4 GHz	3.8 GHz
Ampleon USA Inc. BLM9D2325-20ABZ	Surface Mount	20-PQFN (8x8)		20-QFN Exposed Pad	2.3 GHz	2.5 GHz	28 V
Ampleon USA Inc. BLM9D3740-16AMZ	Surface Mount	20-LGA (7x7)	31.2 dB	20-VLGA Exposed Pad	3.7 GHz	4 GHz	28 V
Ampleon USA Inc. BLM9D2327S-50PB		OMP-780-16F-1	27.5 dB	OMP-780-16F-1	2.3 GHz	2.7 GHz	28 V
Ampleon USA Inc. BLM9D2327S-50PBG	Surface Mount	OMP-780-16G-1	27.5 dB	OMP-780-16G-1	2.3 GHz	2.7 GHz	28 V
Ampleon USA Inc. BLM9D1822S-60PBGY	Surface Mount	OMP-780-16G-1	28.7 dB	OMP-780-16G-1	1.8 GHz	2.2 GHz	28 V
Ampleon USA Inc. BLM9D0910-05AMZ	Surface Mount	20-LGA (7x7)	18 dBi	20-VLGA Exposed Pad	859 MHz	960 MHz
Ampleon USA Inc. BLM9D1822-30BZ	Surface Mount	20-PQFN (8x8)	29.3 dB	20-QFN Exposed Pad	1.8 GHz	2.2 GHz	28 V
Ampleon USA Inc. BLM9D3438-16AMZ	Surface Mount	20-LGA (7x7)	32.5 dB	20-VLGA Exposed Pad	3.4 GHz	3.8 GHz	28 V
