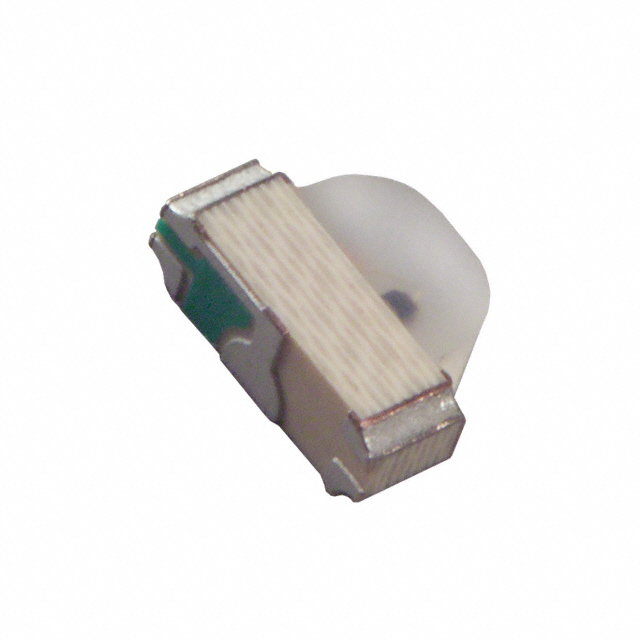

BRPY1211F-TR

Obsolete

Stanley Electric Co

LED GREEN/RED DIFFUSED 2SMD R/A

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED GREEN/RED DIFFUSED 2SMD R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BRPY1211F-TR	BRPY1211 Series

Color	Red, Green	Red, Green
Configuration	Common Anode	Common Anode, Independent
Current - Test	20 mA, 20 mA	20 mA
Height (Max)	-	0.8 mm
Height (Max) [Max]	1.15 mm	1.15 mm
Lens Color	White	White
Lens Size [x]	2 mm	1.1 - 2 mm
Lens Size [y]	1 mm	1 - 1.5 mm
Lens Style	Rectangle with Domed Top	Rectangle with Domed Top, Rectangle with Flat Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	8.8 mcd, 17.6 mcd	8.8 - 17.6 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Package / Case	-	0606, 1616 Metric
Size / Dimension [x]	3 mm	1.6 - 3 mm
Size / Dimension [y]	2 mm	1.5 - 2 mm
Supplier Device Package	2-SMD	2-SMD
Viewing Angle	149 °, 140 °, 143 °, 148 °	139 - 168 °
Voltage - Forward (Vf) (Typ)	1.7 V, 2.1 V	1.7 - 2.1 V
Wavelength - Dominant	647 nm, 572 nm	572 - 647 nm
Wavelength - Peak	660 nm, 570 nm	570 - 660 nm

LED GREEN/RED DIFFUSED 2SMD R/A

Part	Current - Test	Lens Transparency	Voltage - Forward (Vf) (Typ)	Lens Style	Viewing Angle	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Mounting Type	Supplier Device Package	Configuration	Color	Height (Max) [Max]	Lens Color	Wavelength - Dominant	Package / Case	Lens Size [x]	Lens Size [y]	Package / Case	Height (Max) [Max] [z]
Stanley Electric Co BRPY1211F-TR	20 mA, 20 mA	Diffused	1.7 V, 2.1 V	Rectangle with Domed Top	140 °, 143 °, 148 °, 149 °	8.8 mcd, 17.6 mcd	2 mm	3 mm	570 nm, 660 nm	Surface Mount, Right Angle	2-SMD	Common Anode	Green, Red	1.15 mm	White	572 nm, 647 nm	2-SMD, No Lead	2 mm	1 mm
Stanley Electric Co BRPY1211C-TR	20 mA, 20 mA	Diffused	1.7 V, 2.1 V	Rectangle with Flat Top	139 °, 140 °, 150 °, 168 °	11.7 mcd, 11.7 mcd	1.5 mm	1.6 mm	570 nm, 660 nm	Surface Mount		Independent	Green, Red		White	572 nm, 647 nm		1.1 mm	1.5 mm	0606, 1616 Metric	0.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green, Red 572nm Green, 647nm Red LED Indication - Discrete 2.1V Green, 1.7V Red 2-SMD, No Lead
