1-1102502-6

Active

TE Connectivity AMP Connectors

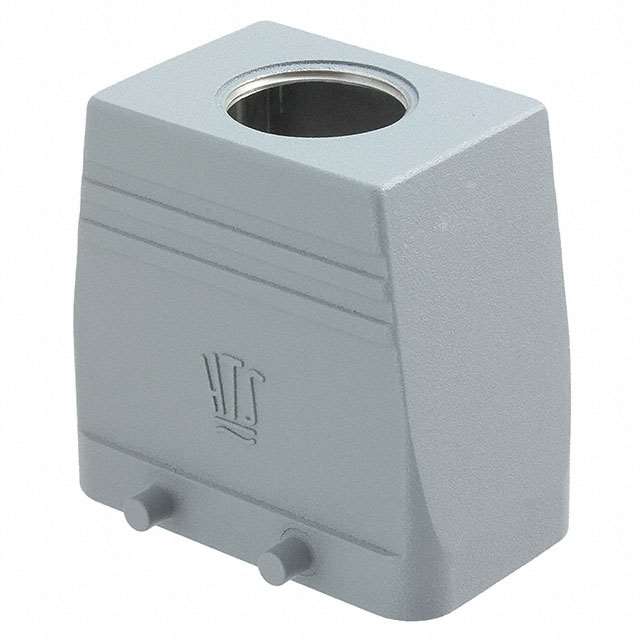

CONN HOOD TOP ENTRY SZ4 PG21

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HOOD TOP ENTRY SZ4 PG21

Technical Specifications

Parameters and characteristics for this part

Specification	1-1102502-6

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Size	4
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.756 in
Size / Dimension [z]	70 mm
Style	Top Entry
Thread Size	PG21

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN HOOD TOP ENTRY SZ4 PG21

Part	Housing Material	Housing Color	Thread Size	Housing Finish	Lock Location	Operating Temperature [Min]	Operating Temperature [Max]	Size	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Style	Connector Type
TE Connectivity AMP Connectors 1-1102502-6	Aluminum Alloy, Die Cast	Gray	PG21	Powder Coated	Locking Clip (2) on Base Bottom	-40 °C	80 C	4	IP65 - Dust Tight, Water Resistant	2.874 in	1.693 in	2.756 in	70 mm	43 mm	73 mm	Top Entry	Hood

General part information

Hood Connector Top Entry PG21 4 IP65 - Dust Tight, Water Resistant
