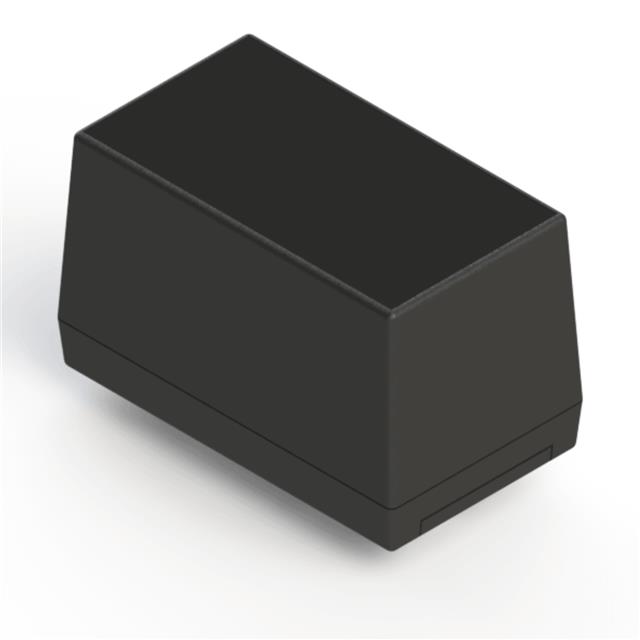

253R,BK

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Search across all available documentation for this part.

Documents253

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Documents253

Technical Specifications

Parameters and characteristics for this part

Specification	253R,BK

Area (L x W)	18.3 in²
Area (L x W)	118 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports, Battery Compartment, Front Access, 9V
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in

Part	Design	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material	Color	Thickness	Thickness	Ratings	Material Flammability Rating	Features
Serpac 253R,AL	Hand Held Split Sides	63.5 mm	2.5 in	18.3 in²	118 cm²	Box	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Almond	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	9V Battery Compartment Front Access PCB Supports
Serpac 253R,GY	Hand Held Split Sides	63.5 mm	2.5 in	18.3 in²	118 cm²	Box	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Gray	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	9V Battery Compartment Front Access PCB Supports
Serpac 253RI,BK	Hand Held Split Sides	63.5 mm	2.5 in	18.3 in²	118 cm²	Box	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Black	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	9V Battery Compartment Front Access PCB Supports
Serpac 253RI,AL	Hand Held Split Sides	63.5 mm	2.5 in	18.3 in²	118 cm²	Box	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Almond	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	9V Battery Compartment Front Access PCB Supports
Serpac 253R,BK	Hand Held Split Sides	63.5 mm	2.5 in	18.3 in²	118 cm²	Box	3.25 "	142.75 mm	82.55 mm	5.62 in	Plastic ABS	Black	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	9V Battery Compartment Front Access PCB Supports

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.11

General part information

Box Plastic, ABS Black Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.500" (63.50mm)
