XUQ525100.000000I
ActiveRenesas Electronics Corporation

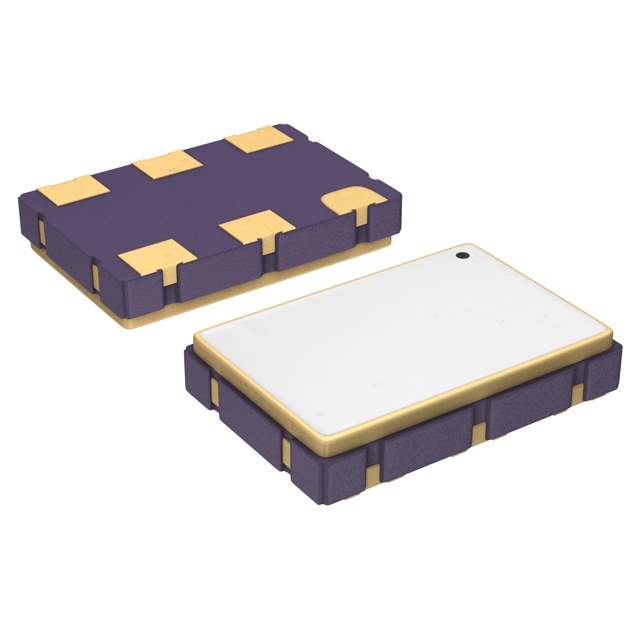

CLCC 5.00X3.20X1.10 MM, 2.54MM P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XUQ525100.000000I
ActiveRenesas Electronics Corporation
CLCC 5.00X3.20X1.10 MM, 2.54MM P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XUQ525100.000000I |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 102 mA |
| Frequency | 100 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVPECL |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.18 | |
| Digi-Reel® | 1 | $ 3.18 | ||
| Tape & Reel (TR) | 1000 | $ 2.12 | ||
XUQ525 Series
CLCC 5.00X3.20X1.10 MM, 2.54MM P
| Part | Frequency Stability | Base Resonator | Package / Case | Mounting Type | Function | Output | Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply (Max) | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Supply | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation XUQ525100.000000I | 50 ppm | Crystal | 6-SMD, No Lead | Surface Mount | Enable/Disable | LVPECL | 100 MHz | 85 °C | -40 °C | 102 mA | XO (Standard) | 0.197 in | 0.126 " | 3.2 mm | 5 mm | 2.5 V | 1.2 mm | 0.047 in |
Description
General part information
XUQ525 Series
100 MHz XO (Standard) LVPECL Oscillator 2.5V Enable/Disable 6-SMD, No Lead
Documents
Technical documentation and resources
