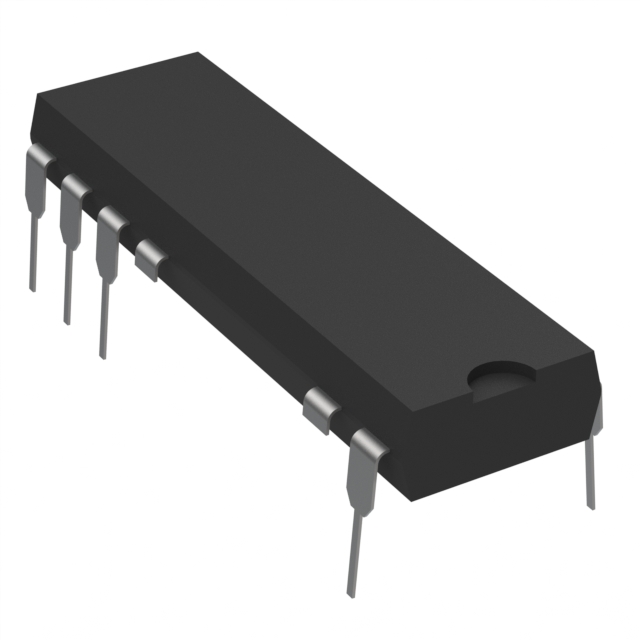

LTC1145CN
ObsoleteAnalog Devices
DGTL ISO 2.5KV OR 3KV 1CH 18DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTC1145CN
ObsoleteAnalog Devices
DGTL ISO 2.5KV OR 3KV 1CH 18DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTC1145CN |
|---|---|
| Data Rate | 200 kHz |
| Inputs - Side 1/Side 2 [custom] | 0 |
| Inputs - Side 1/Side 2 [custom] | 1 |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 18-DIP |
| Package / Case | 7.62 mm |
| Package / Case | 12, 0.3 in |
| Supplier Device Package | 18-PDIP |
| Voltage - Isolation | 3000 VAC |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LTC1145 Series
Digital Isolator 3000Vrms 1 Channel 200kHz CMTI 18-DIP (0.300", 7.62mm), 12 Leads
