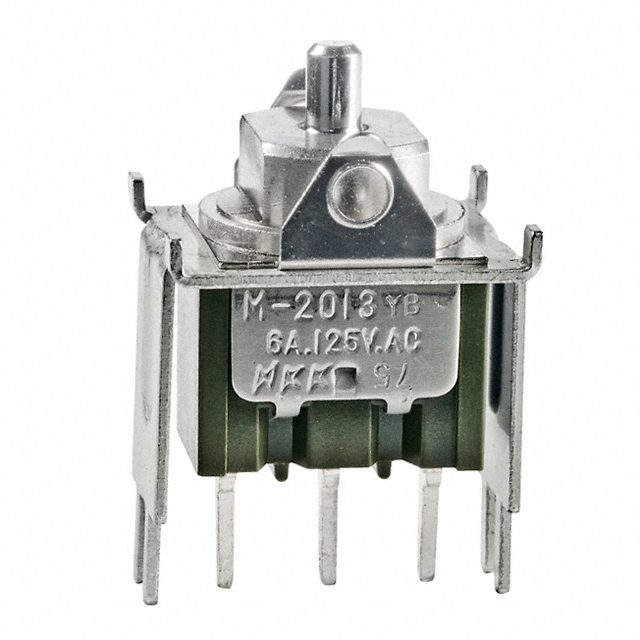

M2013TZW13

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Circuit	Features	Current Rating (Amps)	Actuator Type	Mounting Type	Switch Function	Voltage Rating - DC	Termination Style	Approval Agency	Electrical Life
NKK Switches M2013TZW13-HC	125 V	No Marking	-30 ░C	85 °C	Red	SPDT	Epoxy Sealed Terminals	3 A 6 A	Paddle	Through Hole	On-Off-On	30 V	PC Pin	CSA UL	25000 Steps
NKK Switches M2013TZW13-JA	125 V	No Marking	-30 ░C	85 °C	Black	SPDT	Epoxy Sealed Terminals	3 A 6 A	Concave (Standard V)	Through Hole	On-Off-On	30 V	PC Pin	CSA UL	25000 Steps
NKK Switches M2013TZW13	125 V	Varies by Cap	-30 ░C	85 °C		SPDT	Epoxy Sealed Terminals	3 A 6 A	Actuator Arm Cap Required	Through Hole	On-Off-On	30 V	PC Pin	CSA UL	25000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 6A (AC), 3A (DC) 125 V Through Hole
