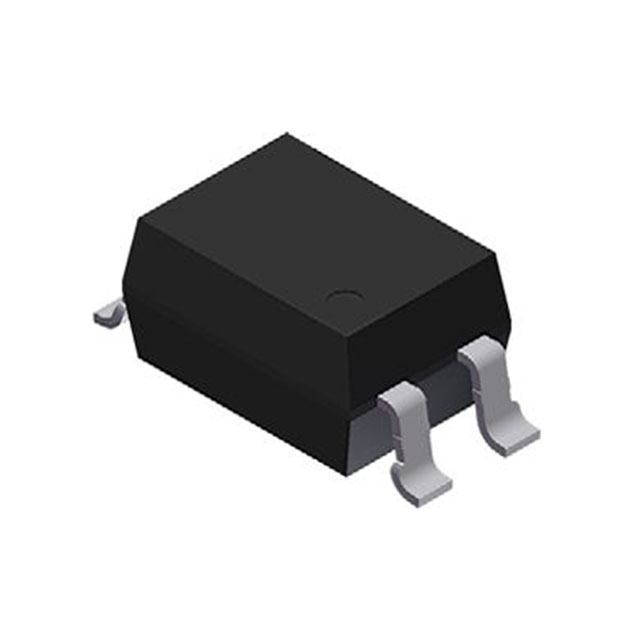

VOR1142B4
ActiveVishay General Semiconductor - Diodes Division
SSR RELAY SPST-NO 140MA 0-400V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VOR1142B4
ActiveVishay General Semiconductor - Diodes Division
SSR RELAY SPST-NO 140MA 0-400V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VOR1142B4 |
|---|---|
| Approval Agency | cUL, DIN, UL |
| Load Current | 140 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 27 Ohms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SMD |
| Package / Case | 7.62 mm, 0.3 in |
| Supplier Device Package | 4-SMD |
| Termination Style | Gull Wing |
| Voltage - Input | 1.36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.70 | |
| 10 | $ 1.59 | |||
| 25 | $ 1.41 | |||
| 50 | $ 1.34 | |||
| 100 | $ 1.27 | |||
| 300 | $ 1.13 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.99 | |||
| 5000 | $ 0.95 | |||
Description
General part information
VOR1142 Series
Solid State SPST-NO (1 Form A) 4-SMD (0.300", 7.62mm)
