LCM-S01602DSF/A

Active

Lumex Opto/Components Inc.

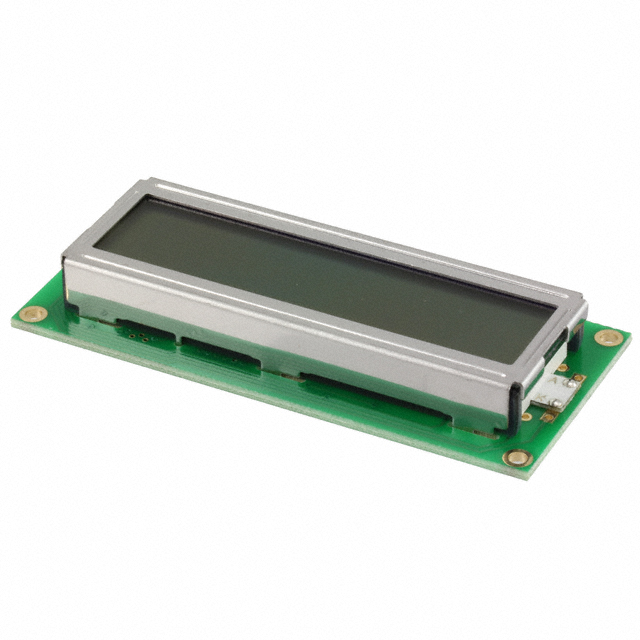

LCD MOD 32DIG 16X2 TRANS YLW/GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCM-S01602DSF/A

Active

Lumex Opto/Components Inc.

LCD MOD 32DIG 16X2 TRANS YLW/GRN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.04
		10	$ 12.10
		135	$ 10.16
		540	$ 9.33
		1080	$ 8.81

Description

General part information

LCM-S01602 Series

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 80.00mm x 36.00mm x 12.70mm

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCM-S01602DSF/A	LCM-S01602 Series

	-	-
Background Color	Green	Green
Backlight	-	Without Backlight, LED - White, LED
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	2.96 mm	2.46 - 4.84 mm
Character Size [z]	5.56 mm	5.56 - 9.63 mm
Display Format [x]	16	16
Display Format [y]	2	2
Display Mode	Transflective	Reflective, Transflective
Display Type	STN - Super-Twisted Nematic	TN - Twisted Nematic, STN - Super-Twisted Nematic
Dot Size [x]	0.56 mm	0.46 - 1.16 mm
Dot Size [y]	0.66 mm	0.66 - 1.16 mm
Interface	Parallel	Parallel
Number of Characters	32	32
Outline L x W x H [x]	80 mm	66 - 122 mm
Outline L x W x H [y]	36 mm	26 - 44 mm
Outline L x W x H [z]	12.7 mm	6.5 - 13 mm
Viewing Area [x]	66 mm	52 - 99 mm
Viewing Area [y]	16 mm	16 - 24 mm
Voltage - Supply	-	4.5 V
Voltage - Supply	-	2.7 V

LCM-S01602 Series

LCD MOD 32 DIG 16 X 2 REFLECTIVE

Part	Character Size [z]	Character Size [y]	Display Mode	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Interface	Character Format [y]	Character Format [x]	Number of Characters	Display Type	Dot Size [y]	Dot Size [x]	Display Format [y]	Display Format [x]	Backlight	Viewing Area [x]	Viewing Area [y]	Background Color
Lumex Opto/Components Inc. LCM-S01602DTR/D	9.63 mm	4.84 mm	Reflective	44 mm	8.8 mm	122 mm	Parallel	8 Dots	5 Dots	32	TN - Twisted Nematic	1.16 mm	1.16 mm	2	16	Without Backlight	99 mm	24 mm
Lumex Opto/Components Inc. LCM-S01602DSF/B-Y
Lumex Opto/Components Inc. LCM-S01602DTR/M	5.56 mm	2.46 mm	Reflective	26 mm	6.5 mm	66 mm	Parallel	8 Dots	5 Dots	32	TN - Twisted Nematic	0.66 mm	0.46 mm	2	16	Without Backlight	52 mm	19 mm	Green
Lumex Opto/Components Inc. LCM-S01602DTR/A	5.56 mm	2.96 mm	Reflective	36 mm	8.8 mm	80 mm	Parallel	8 Dots	5 Dots	32	TN - Twisted Nematic	0.66 mm	0.56 mm	2	16	Without Backlight	66 mm	16 mm	Green
Lumex Opto/Components Inc. LCM-S01602DSF/I	5.56 mm	2.96 mm	Transflective	44 mm	12.7 mm	84 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	0.66 mm	0.56 mm	2	16		66 mm	16 mm
Lumex Opto/Components Inc. LCM-S01602DSR/C	5.56 mm	2.96 mm	Reflective	30 mm	8.9 mm	85 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	0.66 mm	0.56 mm	2	16	Without Backlight	66 mm	16 mm	Green
Lumex Opto/Components Inc. LCM-S01602DSF/D	9.63 mm	4.84 mm	Transflective	44 mm	13 mm	122 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	1.16 mm	1.16 mm	2	16		99 mm	24 mm
Lumex Opto/Components Inc. LCM-S01602DSR/D	9.63 mm	4.84 mm	Reflective	44 mm	8.8 mm	122 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	1.16 mm	1.16 mm	2	16	Without Backlight	99 mm	24 mm	Green
Lumex Opto/Components Inc. LCM-S01602DSF/A-W	5.56 mm	2.96 mm	Transflective	36 mm	12.7 mm	80 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	0.66 mm	0.56 mm	2	16	LED - White	66 mm	16 mm
Lumex Opto/Components Inc. LCM-S01602DTF/M
