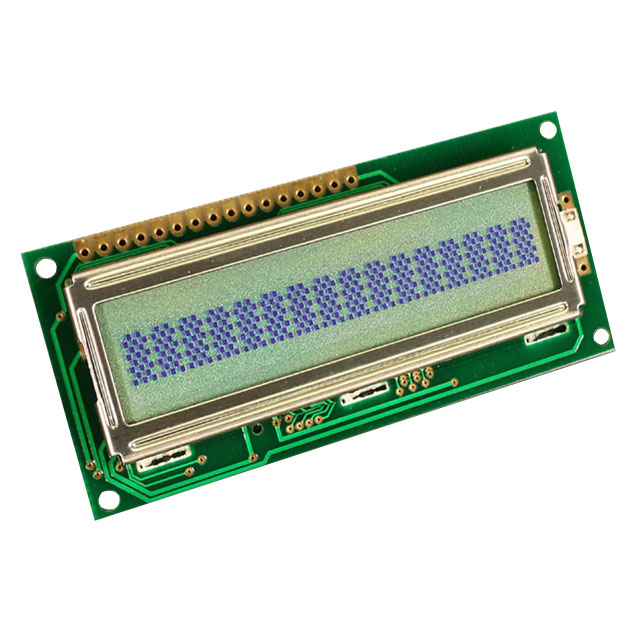

LCM-S01602DSF/A-W

Active

Lumex Opto/Components Inc.

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Deep-Dive with AI

Search across all available documentation for this part.

LCM-S01602DSF/A-W

Active

Lumex Opto/Components Inc.

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LCM-S01602 Series

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 80.00mm x 36.00mm x 12.70mm

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCM-S01602DSF/A-W	LCM-S01602 Series

	-	-
Background Color	-	Green
Backlight	LED - White	Without Backlight, LED - White, LED
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	2.96 mm	2.46 - 4.84 mm
Character Size [z]	5.56 mm	5.56 - 9.63 mm
Display Format [x]	16	16
Display Format [y]	2	2
Display Mode	Transflective	Reflective, Transflective
Display Type	STN - Super-Twisted Nematic	TN - Twisted Nematic, STN - Super-Twisted Nematic
Dot Size [x]	0.56 mm	0.46 - 1.16 mm
Dot Size [y]	0.66 mm	0.66 - 1.16 mm
Interface	Parallel	Parallel
Number of Characters	32	32
Outline L x W x H [x]	80 mm	66 - 122 mm
Outline L x W x H [y]	36 mm	26 - 44 mm
Outline L x W x H [z]	12.7 mm	6.5 - 13 mm
Viewing Area [x]	66 mm	52 - 99 mm
Viewing Area [y]	16 mm	16 - 24 mm
Voltage - Supply	-	4.5 V
Voltage - Supply	-	2.7 V

LCM-S01602 Series

LCD MOD 32 DIG 16 X 2 REFLECTIVE

Part	Character Size [z]	Character Size [y]	Display Mode	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Interface	Character Format [y]	Character Format [x]	Number of Characters	Display Type	Dot Size [y]	Dot Size [x]	Display Format [y]	Display Format [x]	Backlight	Viewing Area [x]	Viewing Area [y]	Background Color
Lumex Opto/Components Inc. LCM-S01602DTR/D	9.63 mm	4.84 mm	Reflective	44 mm	8.8 mm	122 mm	Parallel	8 Dots	5 Dots	32	TN - Twisted Nematic	1.16 mm	1.16 mm	2	16	Without Backlight	99 mm	24 mm
Lumex Opto/Components Inc. LCM-S01602DSF/B-Y
Lumex Opto/Components Inc. LCM-S01602DTR/M	5.56 mm	2.46 mm	Reflective	26 mm	6.5 mm	66 mm	Parallel	8 Dots	5 Dots	32	TN - Twisted Nematic	0.66 mm	0.46 mm	2	16	Without Backlight	52 mm	19 mm	Green
Lumex Opto/Components Inc. LCM-S01602DTR/A	5.56 mm	2.96 mm	Reflective	36 mm	8.8 mm	80 mm	Parallel	8 Dots	5 Dots	32	TN - Twisted Nematic	0.66 mm	0.56 mm	2	16	Without Backlight	66 mm	16 mm	Green
Lumex Opto/Components Inc. LCM-S01602DSF/I	5.56 mm	2.96 mm	Transflective	44 mm	12.7 mm	84 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	0.66 mm	0.56 mm	2	16		66 mm	16 mm
Lumex Opto/Components Inc. LCM-S01602DSR/C	5.56 mm	2.96 mm	Reflective	30 mm	8.9 mm	85 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	0.66 mm	0.56 mm	2	16	Without Backlight	66 mm	16 mm	Green
Lumex Opto/Components Inc. LCM-S01602DSF/D	9.63 mm	4.84 mm	Transflective	44 mm	13 mm	122 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	1.16 mm	1.16 mm	2	16		99 mm	24 mm
Lumex Opto/Components Inc. LCM-S01602DSR/D	9.63 mm	4.84 mm	Reflective	44 mm	8.8 mm	122 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	1.16 mm	1.16 mm	2	16	Without Backlight	99 mm	24 mm	Green
Lumex Opto/Components Inc. LCM-S01602DSF/A-W	5.56 mm	2.96 mm	Transflective	36 mm	12.7 mm	80 mm	Parallel	8 Dots	5 Dots	32	STN - Super-Twisted Nematic	0.66 mm	0.56 mm	2	16	LED - White	66 mm	16 mm
Lumex Opto/Components Inc. LCM-S01602DTF/M
