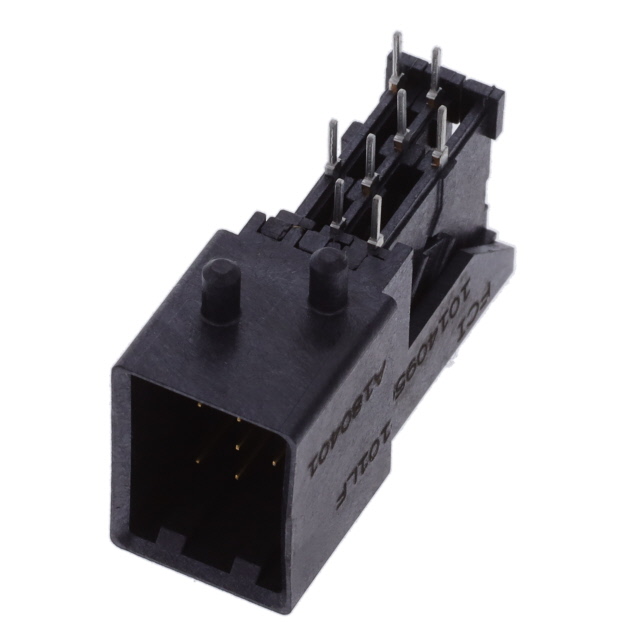

10140950-101LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 12POS 2MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER R/A 12POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	10140950-101LF

Connector Type	Plug
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating [x]	4.3 mm
Contact Length - Mating [x]	0.169 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	IP67
Insulation Height	0.492 in
Insulation Height	12.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	8
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Ingress Protection	Contact Finish - Mating	Features	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Finish - Post	Termination	Style	Fastening Type	Shrouding	Contact Type	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Contact Material	Number of Positions Loaded
Amphenol ICC (FCI) 10140950-103LF	0.079 in	2 mm	0.079 in	2 mm	Through Hole Right Angle	IP67	Gold	Board Guide	4.3 mm	0.169 in	0.492 in	12.5 mm	Plug	0.106 in	2.69 mm	Rectangular	Tin	Solder	Board to Cable/Wire	Latch Holder	Shrouded - 4 Wall	Male Pin	All	12	UL94 V-0	Copper Alloy
Amphenol ICC (FCI) 10140950-101LF	0.079 in	2 mm	0.079 in	2 mm	Through Hole Right Angle	IP67	Gold	Board Guide	4.3 mm	0.169 in	0.492 in	12.5 mm	Plug	0.106 in	2.69 mm	Rectangular	Tin	Solder	Board to Cable/Wire	Latch Holder	Shrouded - 4 Wall	Male Pin		12	UL94 V-0	Copper Alloy	8
