M39029/1 Series

Part	Type	Size / Dimension Length	Contact Size	Grade	Contact Material	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG	Contact Finish	Contact Type	Qualification	Contact Termination	Contact Finish Thickness
Preci-Dip M39029/1-100	Contact Machined Power	0.418 in	16 S 22	Military	Copper Alloy	22 AWG	22 AWG	Gold	Pin	MIL-C-39029	Crimp	50 µin
Preci-Dip M39029/1-103	Machined Power		12	Military	Copper Alloy	12 AWG	12 AWG	Gold	Pin	MIL-C-39029	Crimp	50 µin
Preci-Dip M39029/1-101	Machined Power		16 S	Military	Copper Alloy		20 AWG	Gold	Pin	MIL-C-39029	Crimp	50 µin

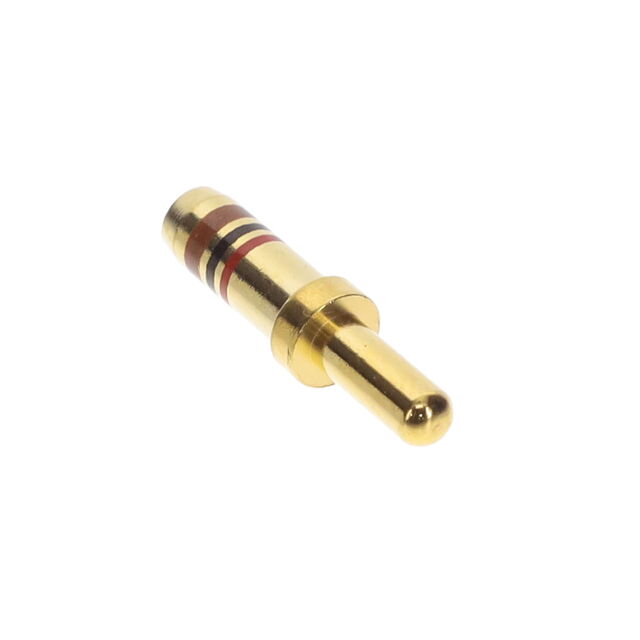

Preci-Dip M39029/1-102	Machined Power		14	Military	Copper Alloy	16 AWG	16 AWG	Gold	Pin	MIL-C-39029	Crimp	50 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
