DC0019/02-TG-A486G-0.3-2A
Activet-Global Technology

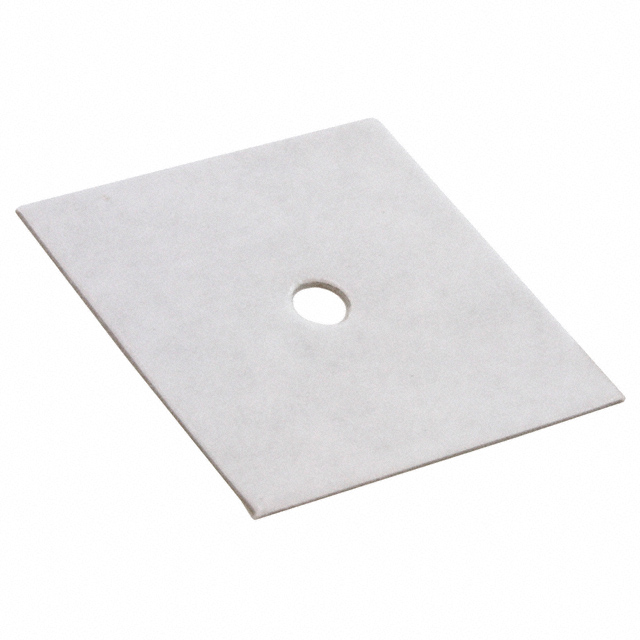

THERM PAD 28.58MMX28.58MM W/ADH
Deep-Dive with AI
Search across all available documentation for this part.
DC0019/02-TG-A486G-0.3-2A
Activet-Global Technology
THERM PAD 28.58MMX28.58MM W/ADH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DC0019/02-TG-A486G-0.3-2A | DC0019/02 Series |
|---|---|---|
| Adhesive | Adhesive - Both Sides | Adhesive - Both Sides |
| Backing, Carrier | - | Viscose |
| Color | Gray | Red, Yellow, White, Gray |
| Material | - | Silicone |
| Outline [x] | 28.58 mm | 28.58 mm |
| Outline [y] | 28.58 mm | 28.58 mm |
| Shape | Square | Square |
| Shelf Life | 12 Months | 12 - 24 Months |
| Shelf Life Start | Date of Purchase | Date of Purchase |
| Thermal Conductivity | 6 W/m-K | 1.4 - 6 W/m-K |
| Thickness | - | 0.1 mm |
| Thickness | - | 0.0039 in |
| Thickness | - | 0.005 in |
| Thickness | - | 0.127 mm |
| Thickness [custom] | 0.305 mm | 0.254 - 0.305 mm |
| Thickness [custom] | 0.012 " | 0.01 - 0.012 in |
| Type | Die-Cut Pad, Sheet | Die-Cut Pad, Sheet |
| Usage | Rectifier | Rectifier |
DC0019/02 Series
THERM PAD 28.58MMX28.58MM RED
| Part | Outline [x] | Outline [y] | Color | Shelf Life | Shape | Material | Shelf Life Start | Type | Usage | Thickness | Thickness | Thermal Conductivity | Thickness [custom] | Thickness [custom] | Adhesive | Backing, Carrier | Thickness [x] | Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology DC0019/02-TG-A482K-0.1-0 | 28.58 mm | 28.58 mm | Red | 24 Months | Square | Silicone | Date of Purchase | Die-Cut Pad, Sheet | Rectifier | 0.1 mm | 0.0039 in | 2.3 W/m-K | ||||||
t-Global Technology DC0019/02-TG-A373F-0.25-2A | 28.58 mm | 28.58 mm | Yellow | 12 Months | Square | Die-Cut Pad, Sheet | Rectifier | 1.4 W/m-K | 0.254 mm | 0.01 in | Adhesive - Both Sides | |||||||
t-Global Technology DC0019/02-TI900-0.12-2A | 28.58 mm | 28.58 mm | White | 24 Months | Square | Silicone | Die-Cut Pad, Sheet | Rectifier | 1.8 W/m-K | Adhesive - Both Sides | Viscose | 0.005 in | 0.127 mm | |||||
t-Global Technology DC0019/02-TG-A486G-0.3-2A | 28.58 mm | 28.58 mm | Gray | 12 Months | Square | Date of Purchase | Die-Cut Pad, Sheet | Rectifier | 6 W/m-K | 0.305 mm | 0.012 " | Adhesive - Both Sides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.88 | |
| 10 | $ 2.80 | |||
| 25 | $ 2.73 | |||
| 50 | $ 2.58 | |||
| 100 | $ 2.42 | |||
| 250 | $ 2.27 | |||
| 500 | $ 2.20 | |||
| 1000 | $ 1.97 | |||
| 5000 | $ 1.93 | |||
Description
General part information
DC0019/02 Series
Thermal Pad Gray 28.58mm x 28.58mm Square Adhesive - Both Sides
